With navigation

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

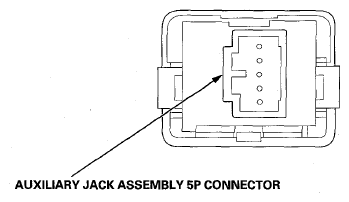

Fig 1: Identifying Auxiliary Jack Assembly Connector Terminals - With Navigation
G08083060Courtesy of AMERICAN HONDA MOTOR CO., INC.

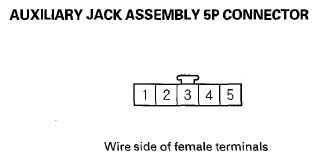

Fig 2: Identifying Auxiliary Jack Assembly 5P Connector Terminals
G08083061Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
1 WHT Audio-navigation unit (AUX DET)
2 BRN Audio-navigation unit (AUX GND)
3 BLU Audio-navigation unit (AUX SIG GND)
4 YEL Audio-navigation unit (AUX L)
5 GRN Audio-navigation unit (AUX R)
