Navigation System Connector Location

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the audio section for the connector B, C, and G input and outputs AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS; WITH NAVIGATION ).

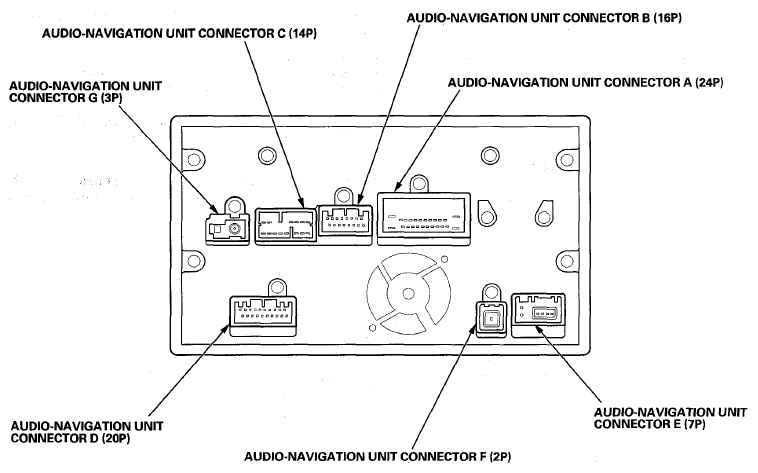

Fig 1: Identifying Navigation System Connector Terminals
G08083168Courtesy of AMERICAN HONDA MOTOR CO., INC.
