Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Remove the EVAP canister Service and Repair.

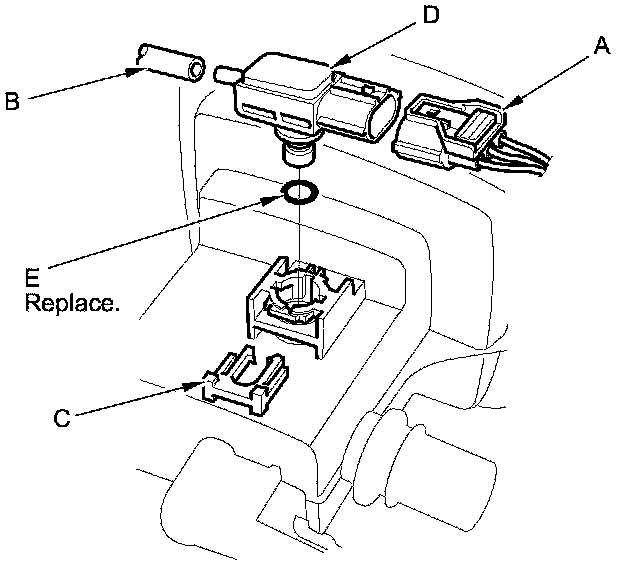

2. Disconnect the FTP sensor connector (A).





3. Disconnect the hose (B), remove the retainer (C), and remove the FTP sensor (D).

4. Install the parts in the reverse order of removal with a new O-ring (E).
