A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid Connector End View (View 153)
GRY
Under Center Console
On Dashboard Wire Harness

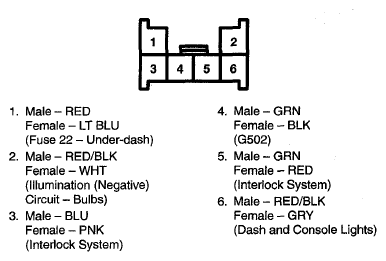

Fig 1: A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid Connector Terminal (View 153)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
