Exploded View

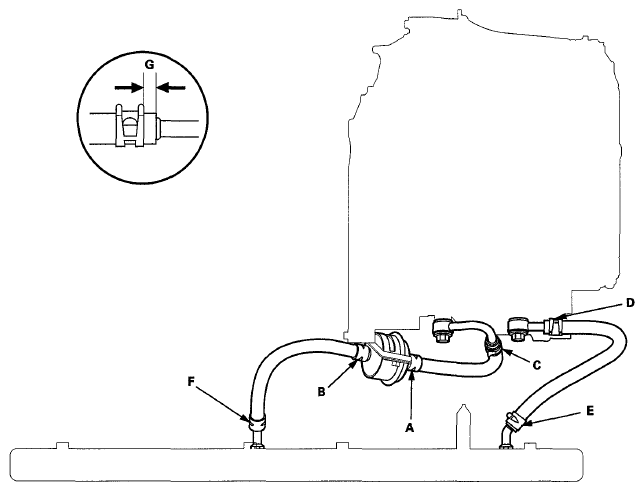

Fig 1: Identifying Distance From Hose End To Clip

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the CVTF cooler hoses over the CVTF cooler lines with the clips at appropriate points in reference to the following list.

CVTF COOLER HOSE SPECIFICATION

Point	Distance from Hose End to Clip (G)	Hose End Contact Point
A	2-4 mm (0.08-0.16 in)	White Paint Mark
B	2-4 mm (0.08-0.16 in)	CVTF Filter Housing from 5-7 mm (0.20-0.28 in)
C	6-8 mm (0.24-0.31 in)	Bulge
D	6-8 mm (0.24-0.31 in)	Bulge
E	2-4 mm (0.08-0.16 in)	Bulge
F	2-4 mm (0.08-0.16 in)	Bulge

Refill the transmission with CVTF to the proper level (see CVT FLUID REPLACEMENT ).
