Grade Logic Control: Ascending Control

When the PCM determines that the vehicle is climbing a hill in the D and S positions, the system selects the most suitable shift schedule based on the steepness of the grade so the vehicle can run smoothly and have more power when needed.

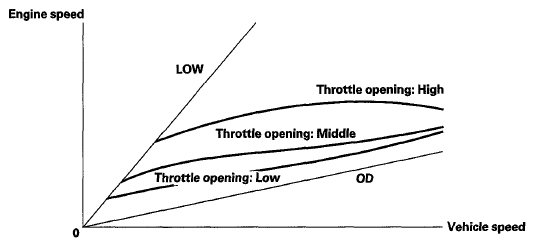

Fig 1: Electronic Control System Graph - Grade Logic Control (Ascending Control)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
