PCM CVT Control System Electrical Connections-Five-position Transmission

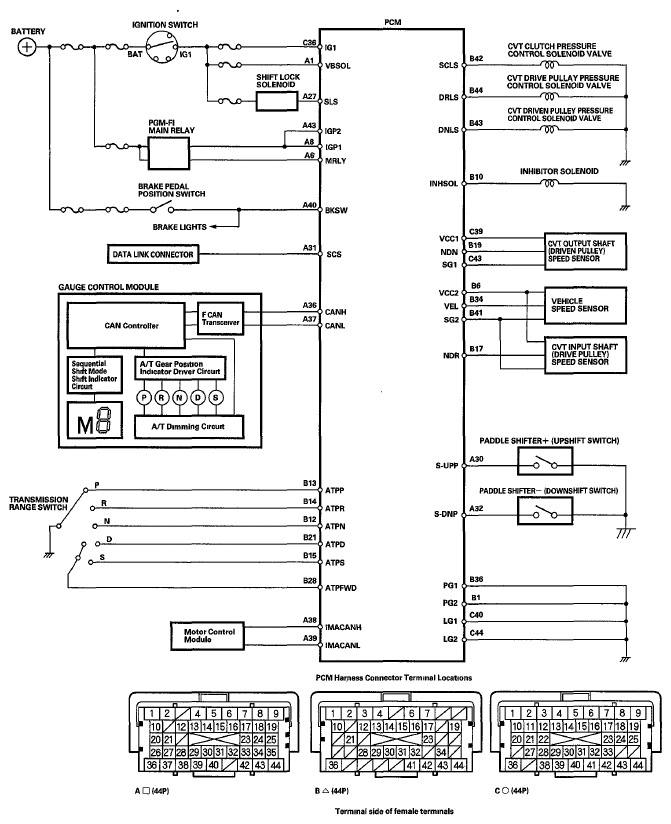

Fig 1: PCM CVT Control System Electrical Connections Circuit Diagram - Five-Position Transmission
