Hydraulic Flow: Notes
As the engine turns, the CVTF pump starts to operate. Transmission fluid (CVTF) is drawn through the CVTF strainer (filter) and discharged into the hydraulic circuit. Then, CVTF flowing from the CVTF pump flows to the pressure high (PH) regulator valve and becomes pressure high (PH) pressure. PH pressure flows to the pulley control valves and then to the pulleys.
The PCM actuates the solenoid valves to control hydraulic pressure shifting pulley ratio and engaging the start clutch.

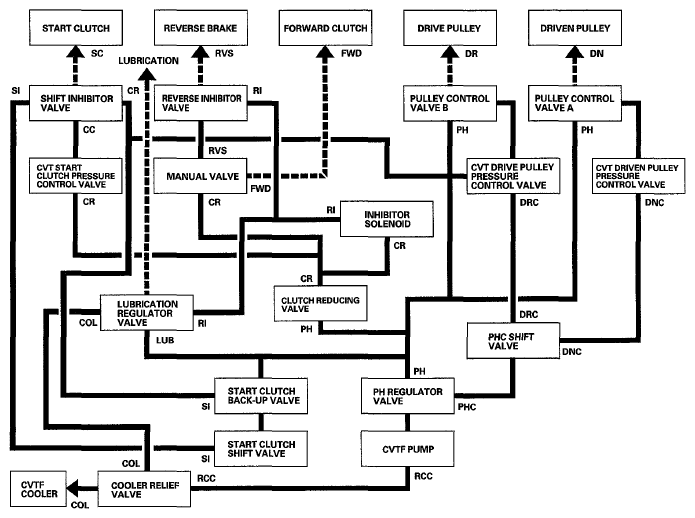

Hydraulic Pressure Flow Circuit Diagram
HYDRAULIC PRESSURE CHART
| Port No. | Hydraulic Pressure | Port No. | Hydraulic Pressure |
|---|---|---|---|
| CC | Start Clutch Control | LUB | Lubrication |
| CCB | Start Clutch Control B | PH | Pressure High |
| COL | CVTF Cooler | PHC | Pressure High Control |
| CR | Clutch Reducing | RCC | Recirculation |
| DN | Driven Pulley | RI | Reverse Inhibitor |
| DNC | Driven Pulley Control | RVS | Reverse Brake |
| DR | Drive Pulley | SC | Start Clutch |
| DRC | Drive Pulley Control | SI | Shift Inhibitor |
| FWD | Forward Clutch | X | Drain |
