Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES , before doing repair or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Disconnect the cable reel sub harness 20P connector.

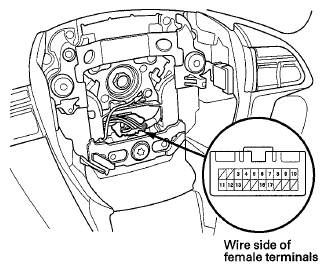

Fig 1: Identifying Cable Reel Sub Harness 20P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each cruise control combination switch position according to the table.

• If there is continuity, and it matches the table, but cruise control combination switch failure occurred on CRUISE CONTROL INPUT TEST  , check and repair the wire harness on the cruise control combination switch circuit.
• If there is no continuity in one or both positions, replace the cruise control combination switch.
Fig 2: Identifying Cable Reel Sub Harness 20P Connector Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
