Ignition Coil Removal/Installation

Remove the engine cover.

Fig 1: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

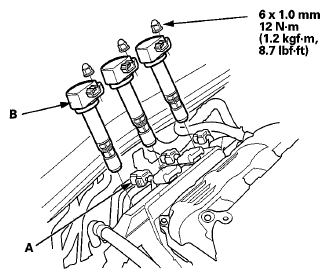

Disconnect the ignition coil connectors (A), then remove the ignition coils (B).
FRONT

Fig 2: Front Ignition Coil Connectors With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR

Fig 3: Rear Ignition Coil Connectors With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the spark plugs and inspect them (see 2 ).
Apply a small amount of anit-seize compound to the plug threads, and screw the plugs into the cylinder head, finger-tight. Torque them to 22 N.m (2.2 kgf.m,16 lbf.f)
Install the ignition coils in the reverse order of removal.
