Spark Plug Inspection

Remove the ignition coils (see 2).
If the spark plugs, then inspect the electrodes and the ceramic insulator.
- Burned or worn electrodes may be caused by these conditions:
  - Advanced ignition timing
  - Loose spark plug
  - Plug heat range too hot
  - Insufficient cooling
- Fouled plugs may be caused by these conditions:
  - Retarded ignition timing
  - Oil in combustion chamber
  - Incorrect spark plug gap
  - Plug heat range too cold
  - Excessive idling/low speed running
  - Clogged air cleaner element
  - Deteriorated ignition coils

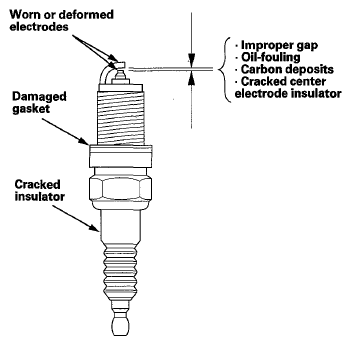

Fig 1: Identifying Incorrect Spark Plug Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the spark plug electrode is dirty or contaminated, clean the electrode with a plug cleaner.
NOTE:
- Do not use a wire brush or scrape the iridium electrode since this will damage the electrode.
- When using a sand blaster spark plug cleaner, do not clean for more than 20 seconds to avoid damaging the electrode.
Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger-tight. Torque them to 18 N.m (1.8 kgf.m, 13 lbf.ft).
Spark Plug NGK: ILZKR7B-11

Electrode Gap

Standard (New): 1.0-1.1 mm (0.04-0.04 in)

Fig 2: Identifying Spark Plug Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the spark plugs (see 5 )
