Shift Lever/Shift Cable Bracket Assembly Replacement

NOTE:
  • Refer to SHIFT LEVER DISASSEMBLY/REASSEMBLY  as needed during the following procedures.
  • Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Disconnect the D3 switch connector (A), and remove the connection clip (B) from the mounting bracket L.
    Fig 1: Identifying D3 Switch Connector & Clip Connection
    G05961894Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws (A), and remove the shift lever knob assembly (B).
    Fig 2: Identifying Shift Lever Knob Assembly & Screws
    G05961895Courtesy of AMERICAN HONDA MOTOR CO., INC.

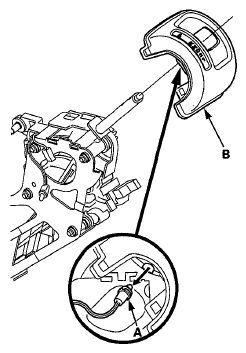

  4. Remove the A/T gear position indicator panel light socket (A) from the indicater panel (B), and remove the indicater panel (B) from the shift lever bracket base.
    Fig 3: Identifying A/T Gear Position Indicator Panel Light Socket & Indicater Panel
    G05961896Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the shift lock solenoid (A) by expanding its lock from other side of the shift lever.
    Fig 4: Identifying Shift Lock Solenoid
    G05961897Courtesy of AMERICAN HONDA MOTOR CO., INC.

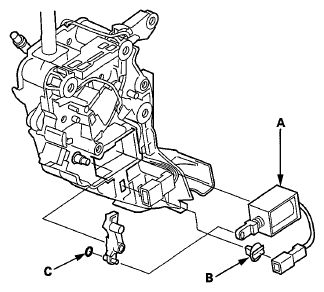

  6. Remove the shift lock solenoid (A), and remove the connector clip (B), and remove the shift lock stop and the stop cushion (C).
    Fig 5: Identifying Shift Lock Solenoid & Stop Cushion
    G05961898Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Release the lock tabs retaining the park pin harness, using thin blade screwdrivers, and remove the A/T gear position indicator panel light harness / park pin switch / D3 switch connector harness, and the harness clip.
    Fig 6: Identifying Lock Tabs Retaining & Park Pin Harness
    G05961899Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Replace the shift lever / shift cable bracket assembly, and install the new A/T gear position indicator light harness/the park pin switch harness / the D3 switch connector harness, and install the harness clip.
    Fig 7: Identifying Shift Cable Bracket Assembly & A/T Gear Position Indicator Light Harness
    G05961900Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Route the A/T gear position indicator panel light harness / park pin switch / D3 switch connector harness in the harness guide.
  10. Install the shift lock stop and the stop cushion.

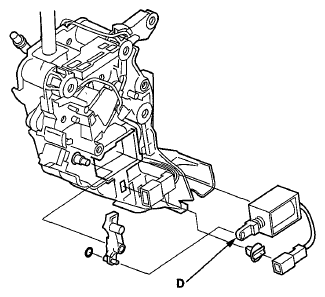

  11. Apply silicone grease to the joint of the shift lock solenoid plunger (D) and the shift lock stop over the pin.
  12. Install the shift lock solenoid, and install the harness clip.
    Fig 8: Identifying Shift Lock Solenoid Plunger
    G05961901Courtesy of AMERICAN HONDA MOTOR CO., INC.

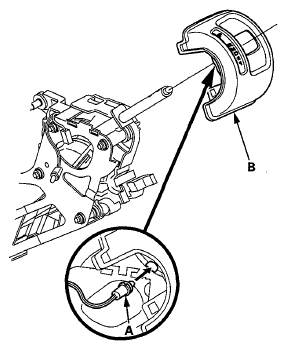

  13. Install the A/T gear position indicator panel, and install the A/T gear position indicator panel light socket (A) in the indicator panel (B).
    Fig 9: Identifying A/T Gear Position Indicator Panel Light Socket & Indicator Panel
    G05961902Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Apply silicone grease to the top of the shift lever rod (A), and install the shift lever knob assembly (B).
  15. Secure the shift lever knob assembly with the new screws (C).
    Fig 10: Shift Lever Rod & Shift Lever Knob Assembly With Torque Specifications
    G05961903Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Install the D3 switch connector clip (A), and connect the D3 switch connector (B).
    Fig 11: Identifying D3 Switch Connector Clip & D3 Switch Connector
    G05961904Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
