Transfer Assembly Removal

Raise the vehicle on a lift, and make sure it is supported securely.
Shift the shift lever to N.
Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

Fig 1: Drain Plug With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with the new sealing washer (B).
Remove the front subframe stiffener.

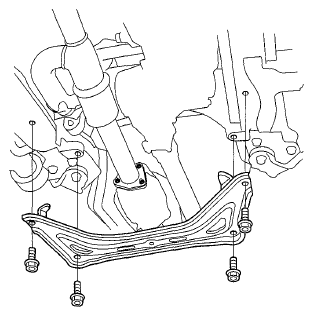

Fig 2: Identifying Front Subframe Stiffener Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove exhaust pipe A.

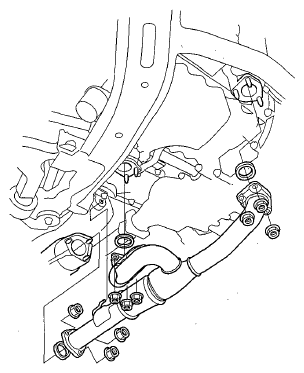

Fig 3: Identifying Exhaust Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the transfer breather hose bracket (A), and disconnect the breather hose (B) from the breather pipe (C) on the transfer assembly.

Fig 4: Identifying Breather Pipe On Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig 5: Identifying Reference Mark Propeller Shaft & Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the propeller shaft from the transfer companion flange.
Remove the transfer assembly from the transmission.

Fig 6: Identifying Propeller Shaft & Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
