Home
>>
Honda
>>
2012
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Voice Activation System
>>
Voice Activation Module
>>
HandsFreeLink Control Unit Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

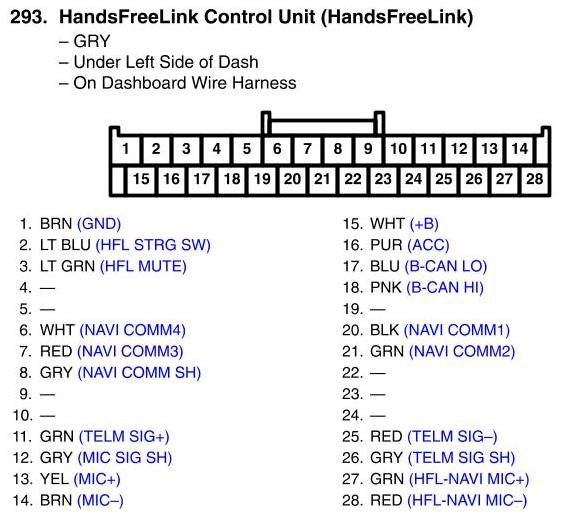

HandsFreeLink Control Unit Connector View
