VTEC (4-CYL)
>>
Component Location Index
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Component Location Index

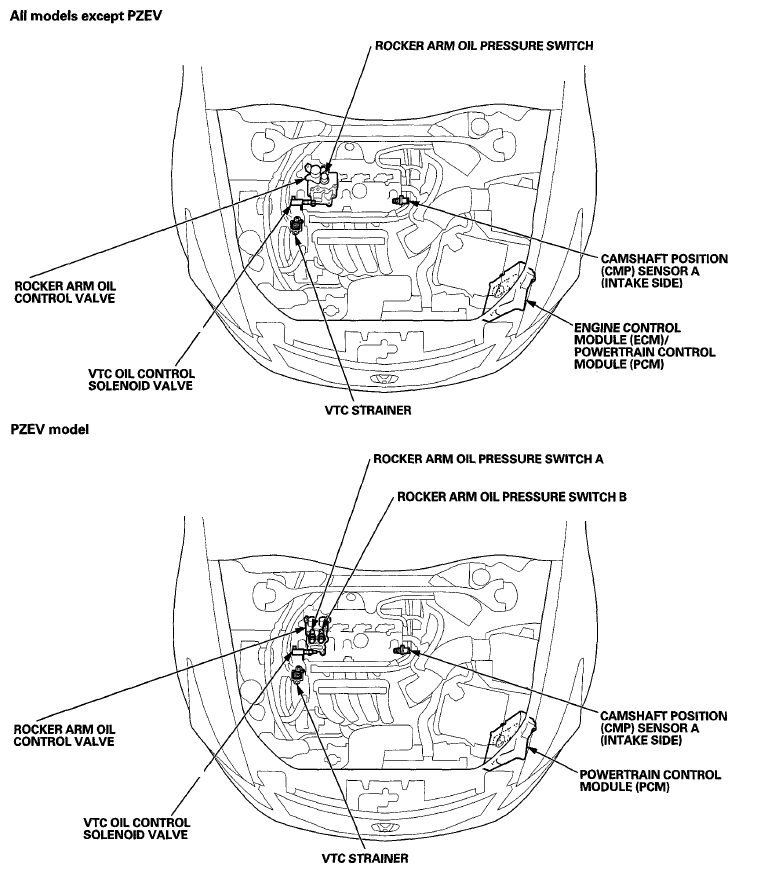

Fig 1: Identifying VTEC-VTC Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
