Section 83 (Driver Position Memory System (DPMS) (V6))
>>
Component Location Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location Index
WARNING:
This page is about a different variant/trim than selected.

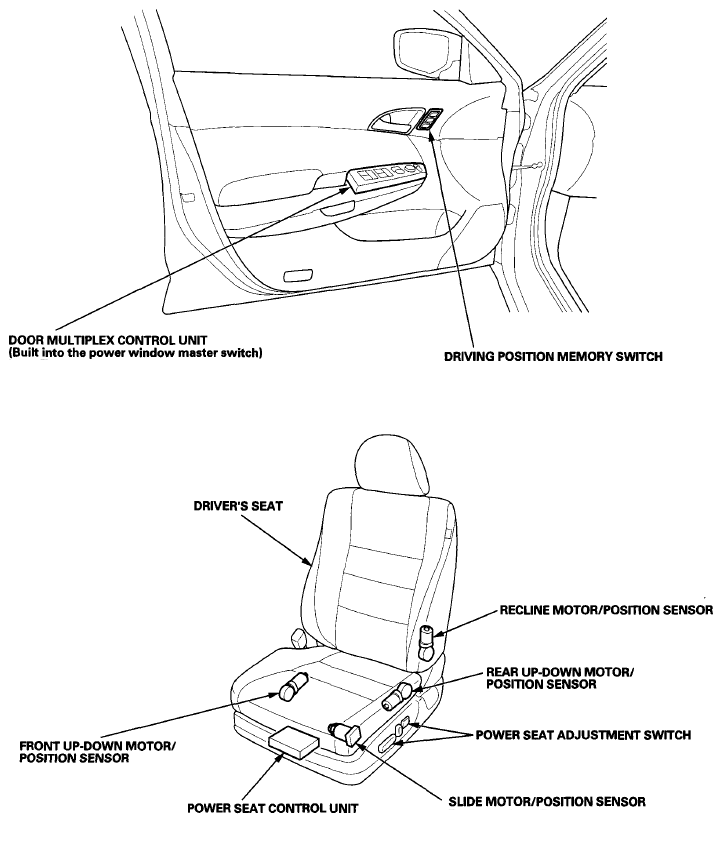

Fig 1: Identifying Driver Position Memory System Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

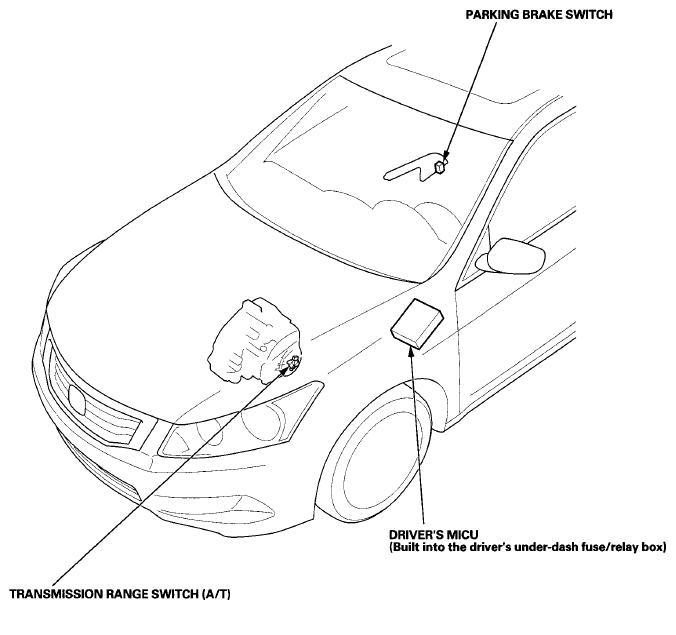

Fig 2: Identifying Driver Position Memory System Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
