Driving Position Memory Switch Test/Replacement

WARNING: This page is about a different variant/trim than selected.

Remove the driver's door panel.
- 4-door (see 4-DOOR )
- 2-door (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
Disconnect the 7P connector (A) from the driver's position memory switch (B).

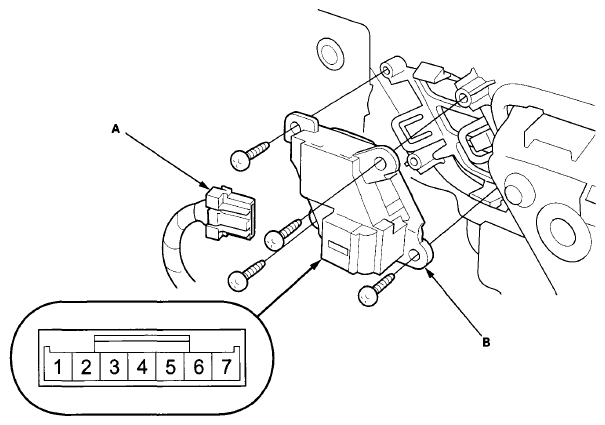

Fig 1: Identifying Driver's Position Memory Switch 7P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four screws, then remove the switch from the door panel.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting ($$) on the digital volt/ohm meter to check the diode bias.
- Be careful of this characteristic; a diode conducts fully in one direction (forward), and not at all in the opposite direction (reverse).

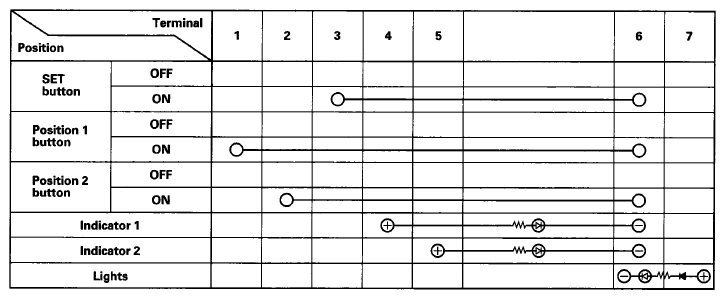

Fig 2: Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
