Power Seat Adjustment Switch Test/Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE: SRS components are located in this area. Review the SRS component locations 4-door (see COMPONENT LOCATION INDEX ), 2-door (see 2-DOOR ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the power seat adjustment switch knobs (A) and the recline cover from the driver's seat.
- 4-door (see 4-DOOR )
- 2-door (see FRONT SEAT CUSHION COVER REPLACEMENT )

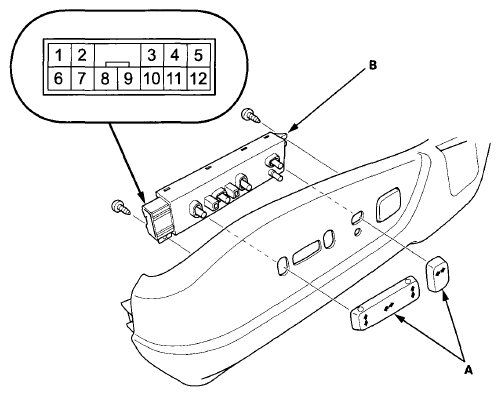

Fig 1: Identifying Power Seat Adjustment Switch Knobs And Power Seat Adjustment Switch Connector Terminals With Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the power seat adjustment switch (B).
Disconnect the 12P connector from the power seat adjustment switch.
Reinstall the adjustment switch knobs to the switch.
Check for continuity between the terminals in each position according to the table.

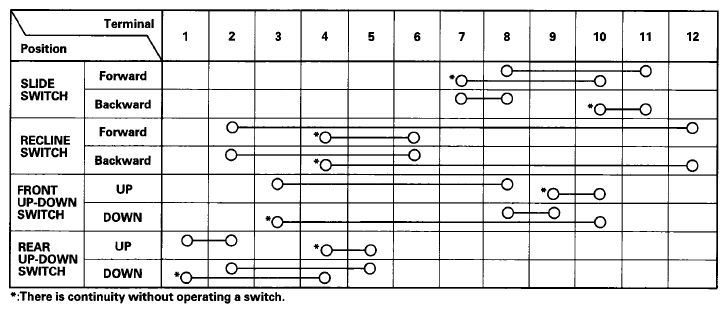

Fig 2: Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

*:There is continuity without operating a switch.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
