Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO value and the maintenance minder data from the gauge control module with the HDS (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER™ DATA TO A NEW GAUGE CONTROL MODULE ).

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Remove the four screws from the gauge control module (A).

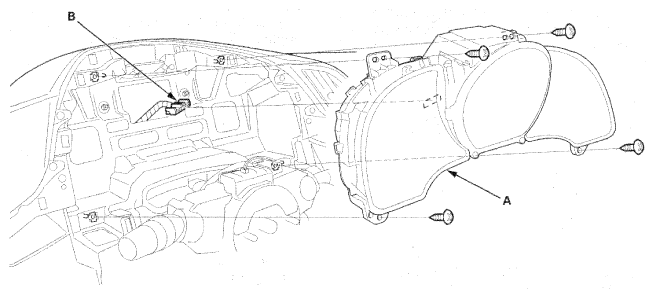

Fig 1: Identifying Gauge Control Module And Gauge Control Module 32P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 32P connector (B) from the gauge control module.
Install the gauge control module in the reverse order of removal.
Rewrite the ODO data and transfer the maintenance minder data to the new gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER™ DATA TO A NEW GAUGE CONTROL MODULE ).
NOTE: Check the official Honda website for more information on how to write odometer information to a gauge control module that will not communicate with the HDS.
