PCM Inputs and Outputs at Connector A □ (44P)

WARNING: This page is about a different variant/trim than selected.

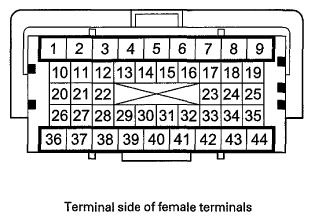

Fig 1: Identifying PCM Inputs And Outputs At Connector A (44P)
G06950891Courtesy of AMERICAN HONDA MOTOR CO., INC.
TERMINALS DESCRIPTION CHART

Terminal Number Wire Color Terminal Name Description Signal
A1 LT GRN VBSOL (POWER SOURCE FOR SOLENOID VALVES) Power source for solenoid valves With ignition switch ON (II): battery voltage
A6 PUR MRLY(PGM-FI MAIN RELAY 1) Drives PGM-FI main relay 1 With ignition switch ON (II): about 0 V
With ignition switch OFF: battery voltage
A8 YEL IGP1 (POWER SOURCE 1) Power source for PCM circuit With ignition switch ON (II): battery voltage
A27 GRY SLS (SHIFT LOCK SOLENOID) Drives shift lock solenoid With ignition switch ON (II), in the P, brake pedal pressed, and accelerator released: about 0 V
A30 YEL SUPP (PADDLE SHIFTER + UPSHIFT SWITCH) Detects paddle shifter + (upshift switch) signal With ignition switch ON (II) and paddle shifter + (upshift switch) pressed: about 0 V
With ignition switch ON (II) and paddle shifter + (upshift switch) released: battery voltage
A31 BRN SCS (SERVICE CHECK SIGNAL) Detects service check signal With service check signal shorted using the HDS: about 0 V With service check signal opened: about 5.0 V
A32 LT GRN SDNP (PADDLE SHIFTER - DOWNSHIFT SWITCH) Detects paddle shifter - (downshift switch) signal With ignition switch ON (II) and paddle shifter - (downshift switch) pressed: about 0 V
With ignition switch ON (II) and paddle shifter - (downshift switch) released: battery voltage

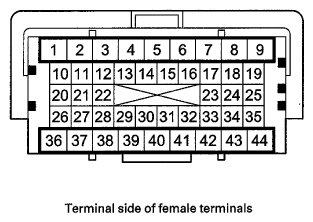

Fig 1: Identifying PCM Inputs And Outputs At Connector A (44P)
G06950892Courtesy of AMERICAN HONDA MOTOR CO., INC.
TERMINALS DESCRIPTION CHART

Terminal Number Wire Color Terminal Name Description Signal
A36 GRN F-CAN H (F-CAN COMMUNICATION SIGNAL HIGH) Sends communication signal With ignition switch ON (II): pulses (about 2.5 V)
A37 PNK F-CAN L (F-CAN COMMUNICATION SIGNAL LOW) Sends communication signal With ignition switch ON (II): pulses (about 2.5 V)
A38 WHT IMA-CAN H (IMA-CAN COMMUNICATION SIGNAL HIGH) Detects communication signal to motor control module (MCM) With ignition switch ON (II): pulses (about 2.5 V)
A39 RED IMA-CAN L (IMA-CAN COMMUNICATION SIGNAL LOW) Detects communication signal to motor control module (MCM) With ignition switch ON (II): pulses (about 2.5 V)
A40 WHT BKSW (BRAKE PEDAL POSITION SWITCH) Detects brake pedal position switch signal With ignition switch ON (II) and brake pedal released: about 0 V
With ignition switch ON (II) and brake pedal pressed: battery voltage
A43 YEL IGP2 (POWER SOURCE 2) Power source for PCM circuit With ignition switch ON (II): battery voltage
