Electronic Throttle Control System Description - Overview

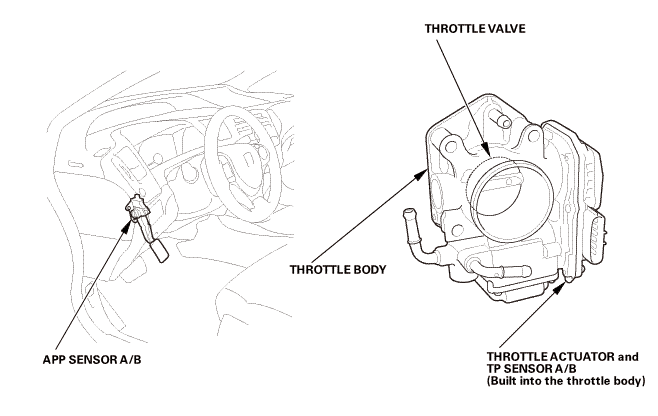

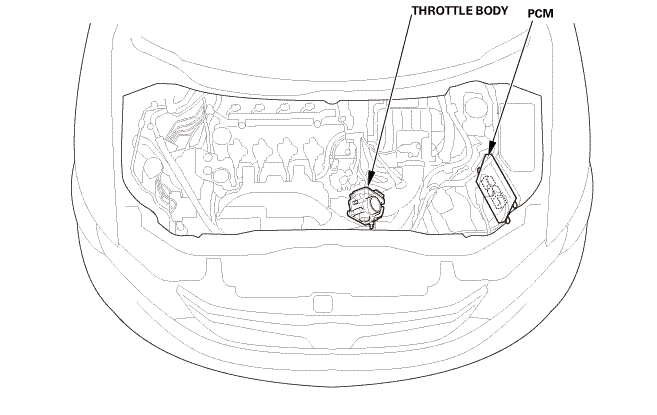

The electronic throttle control system (ETCS) opens and closes the throttle valve by electronic control. This system consists of a throttle actuator built into the throttle body, the throttle valve and throttle position sensor A/B, accelerator pedal position sensor A/B, the ETCS driver built into the powertrain control module (PCM), and the ETCS control relay that supplies power to the ETCS driver.
ETCS is a system that opens and closes the throttle valve electronically and has various functions such as:
- Idle Control Function
Where the throttle position is controlled to optimize idle speed depending on the engine loads when idling.
- Accelerator Control Function
Where the target throttle position is calculated by the throttle position sensor signals to control the throttle valve when the accelerator pedal is pressed.
- VTEC Control Function
Where the throttle valve is controlled in coordination with the VTEC system to switch smoothly.
- Transmission Control Function
Where the throttle valve is controlled in coordination with the transmission to reduce shift time.
- VSA Control Function
Where the throttle position is controlled based on a signal from the VSA modulator-control unit.
- Fail-Safe Function
Where the throttle valve is controlled to avoid danger even in the event of a malfunction.
