Lamp Control Module: Service and Repair

Automatic Lighting Control Unit Removal and Installation

Removal

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Glove Box - Move

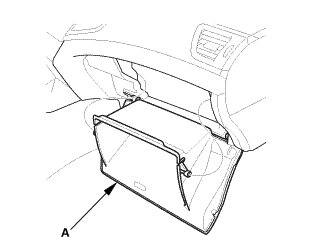

1. Lower the glove box (A).

2. Automatic Lighting Control Unit





1. Disconnect the connector.

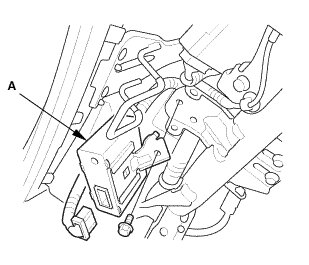

2. Remove the automatic lighting control unit (A).

Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Automatic Lighting Control Unit

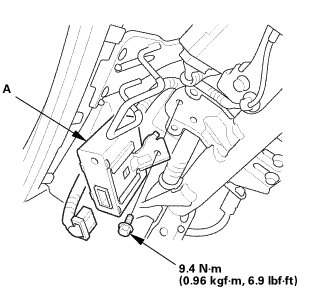

1. Install the automatic lighting control unit (A).

2. Connect the connector.

2. Glove Box - Move





1. Install the glove box (A).
