Air Flow Meter/Sensor: Service and Repair

MAF Sensor/IAT Sensor Removal and Installation

Removal

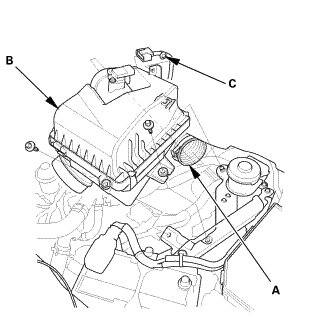

1. Air Cleaner





1. Disconnect the intake air duct (A).

2. Remove the air cleaner (B).

3. Remove the harness clamp (C).

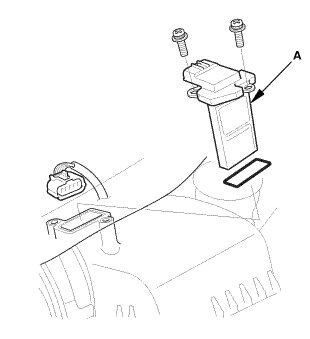

2. MAF Sensor/IAT Sensor





1. Remove the MAF sensor/IAT sensor (A).

Installation

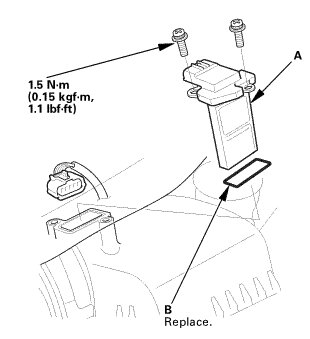

1. MAF Sensor/IAT Sensor





1. Install the MAF sensor/IAT sensor (A) with a new O-ring (B).

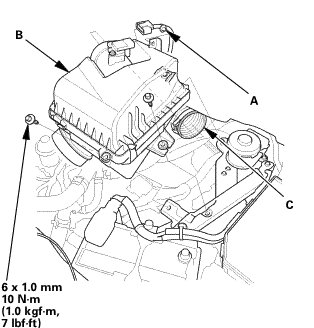

2. Air Cleaner





1. Install the harness clamp (A).

2. Install the air cleaner (B).

3. Connect the intake air duct (C).
