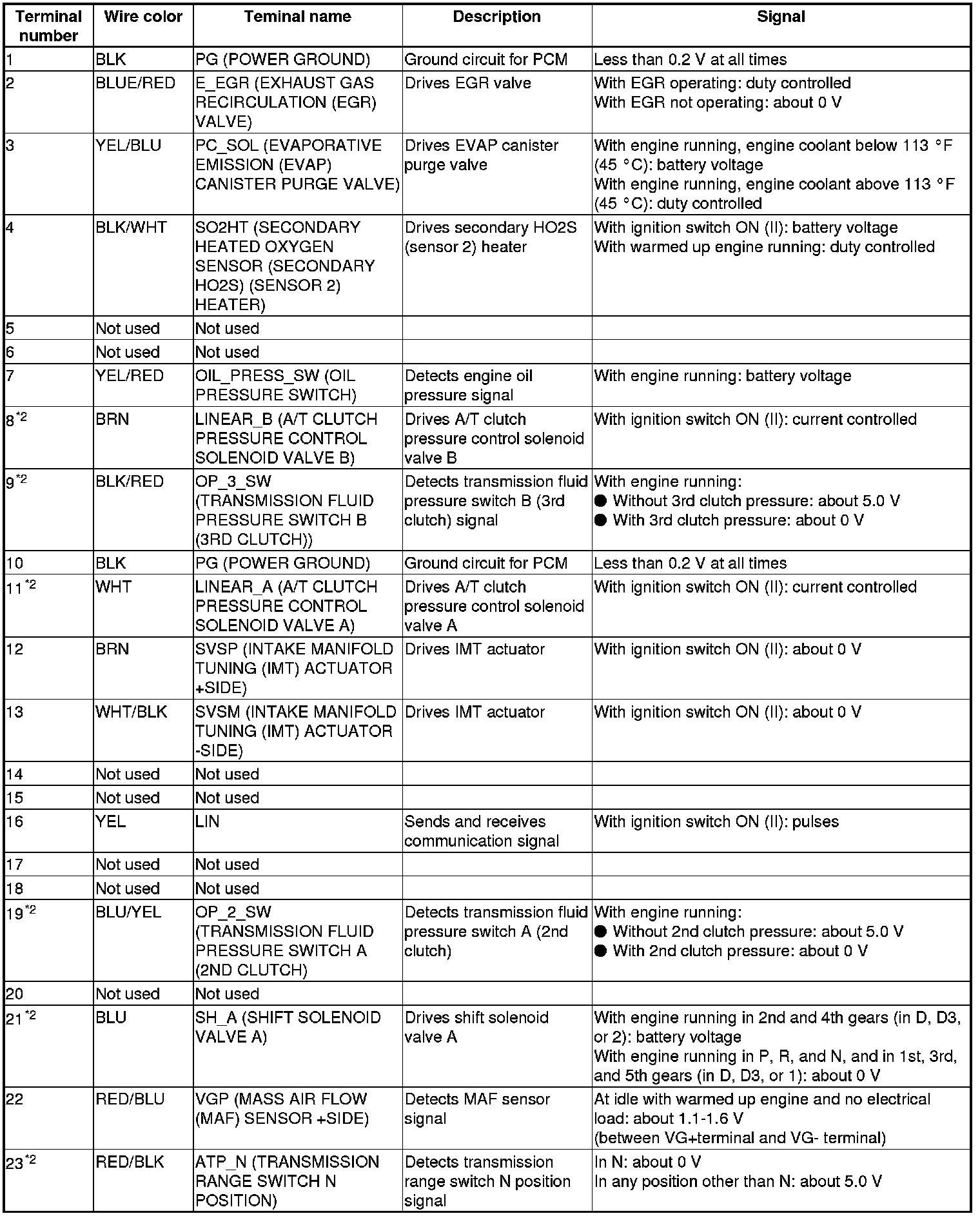

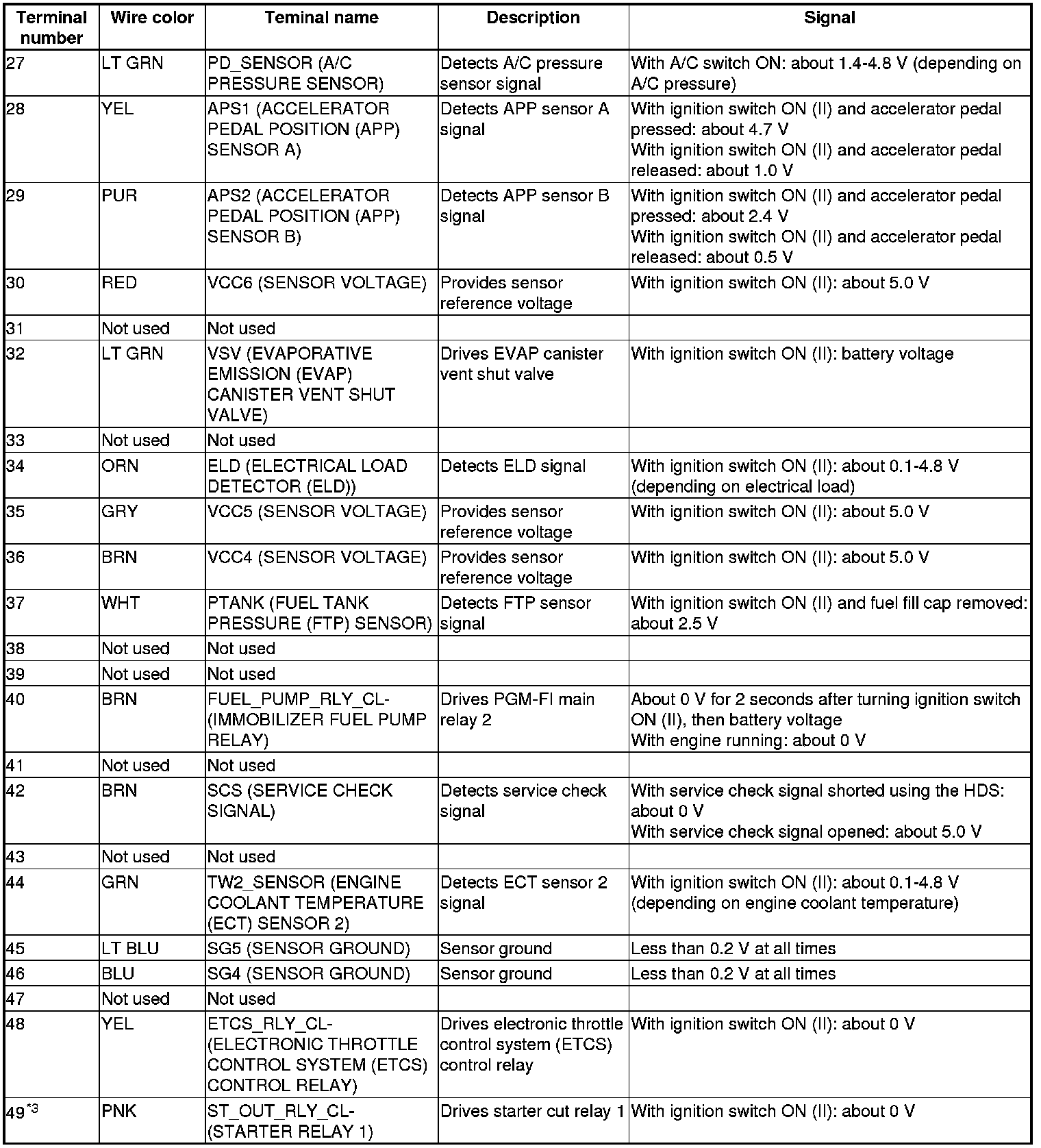

ECM/PCM Connector for Inputs and Outputs




Engine

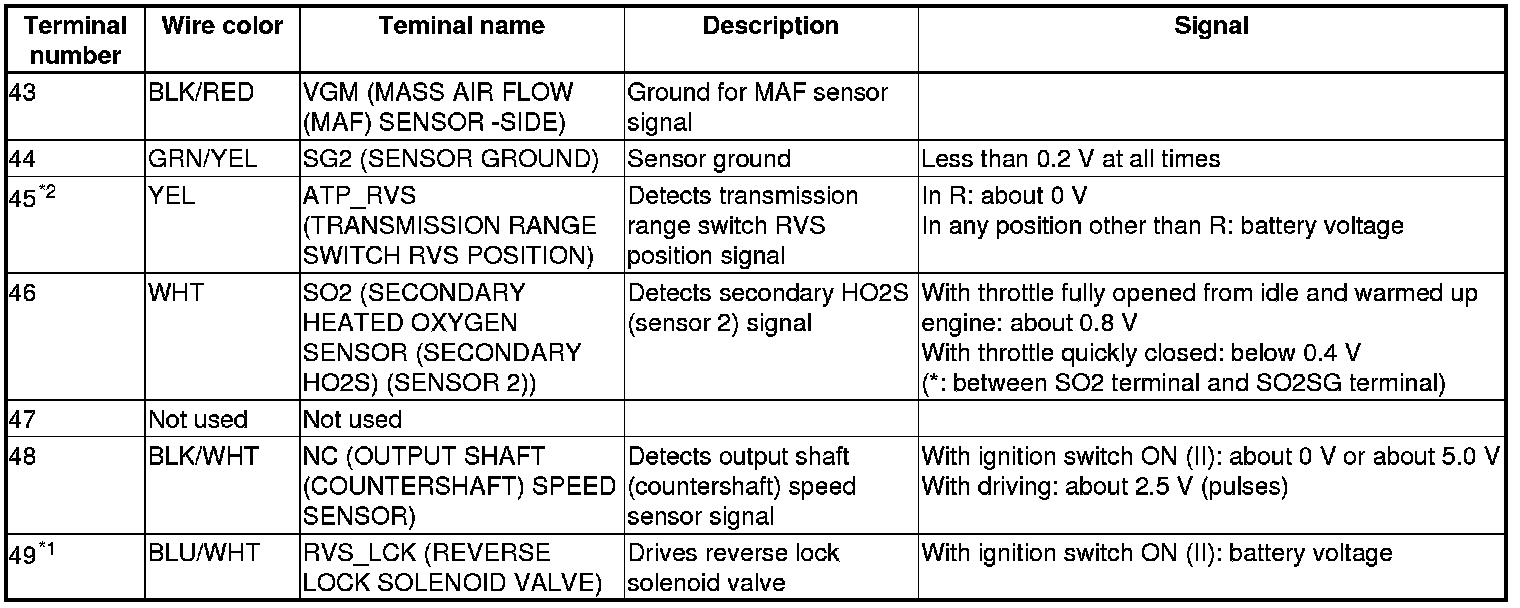

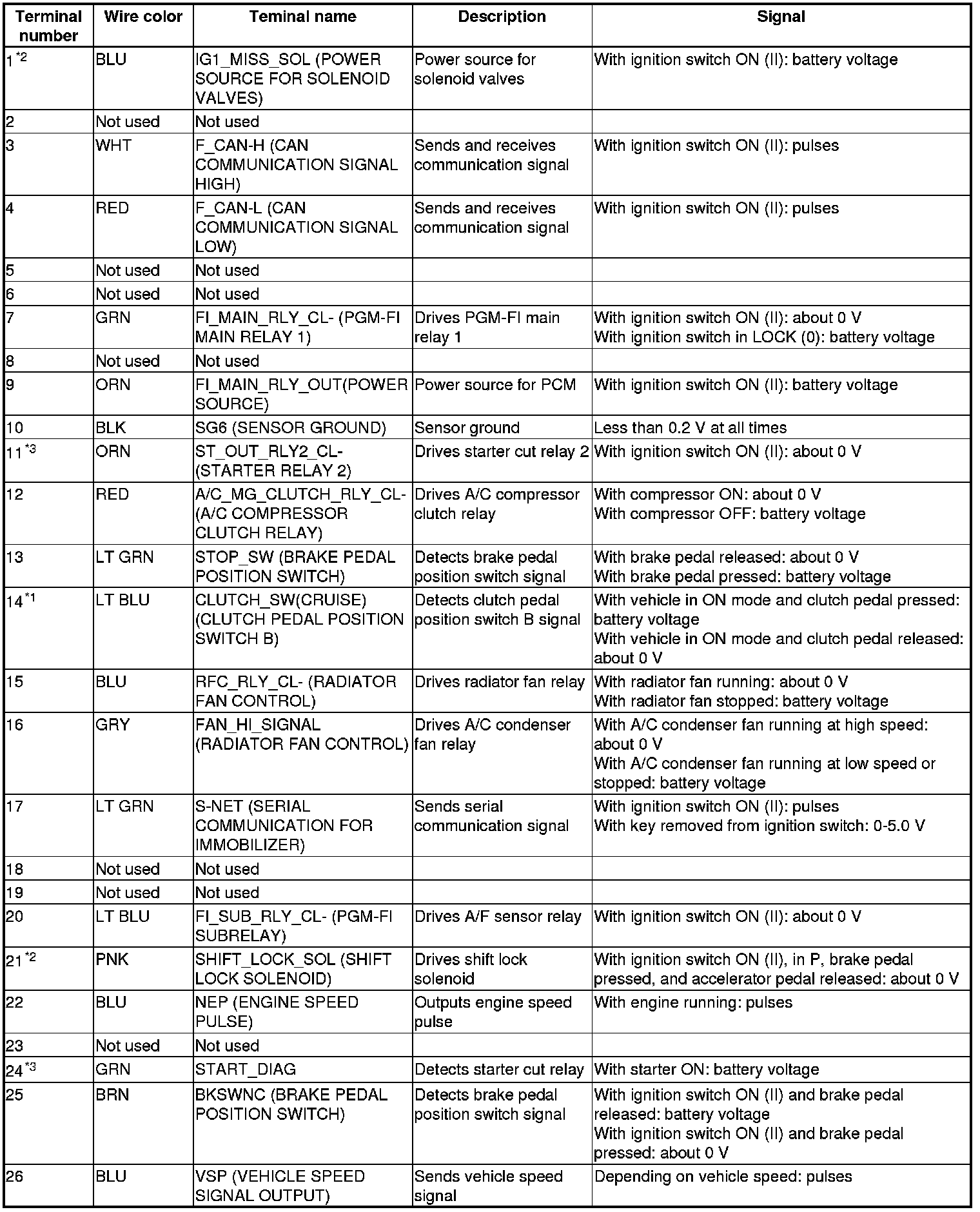

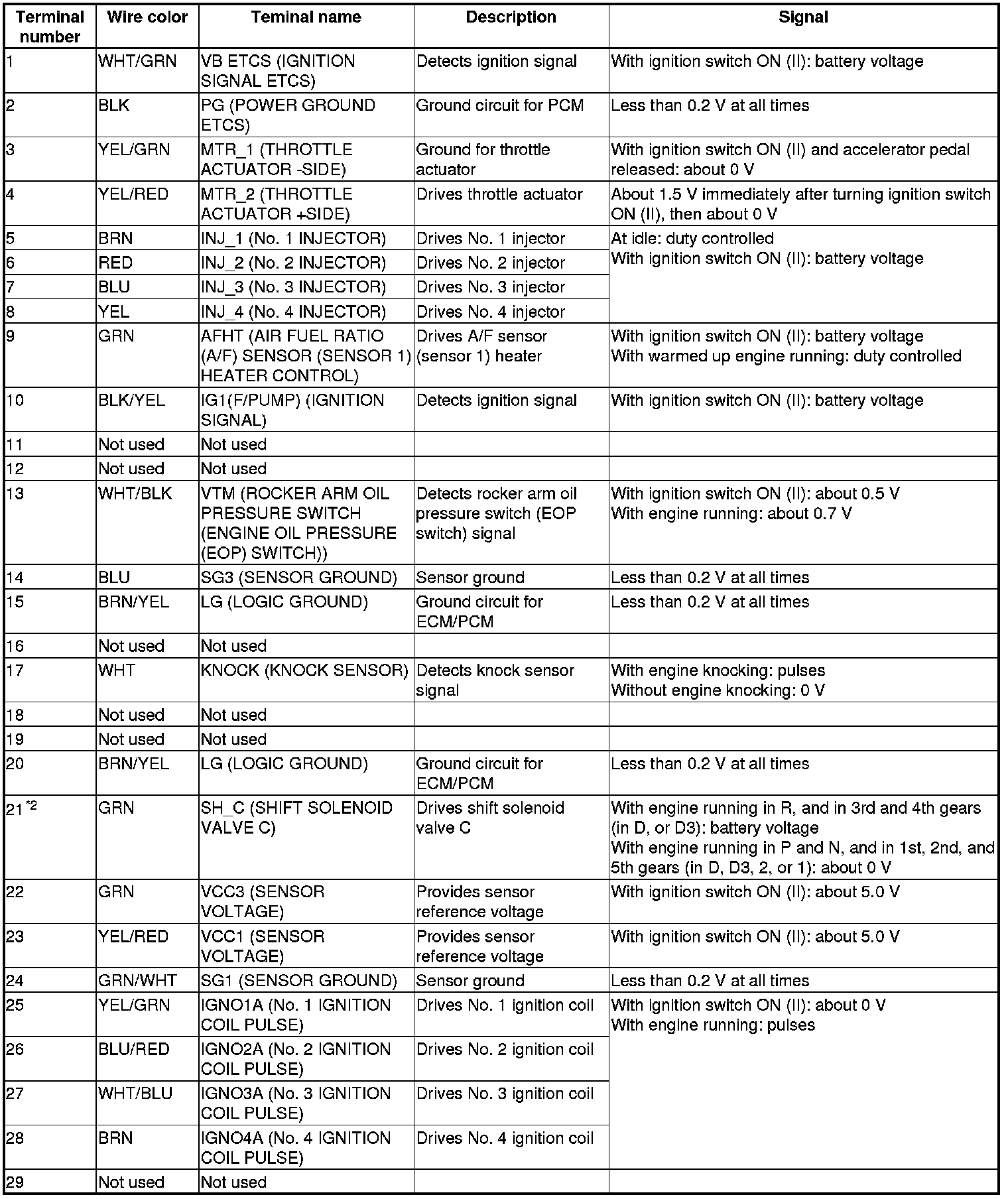

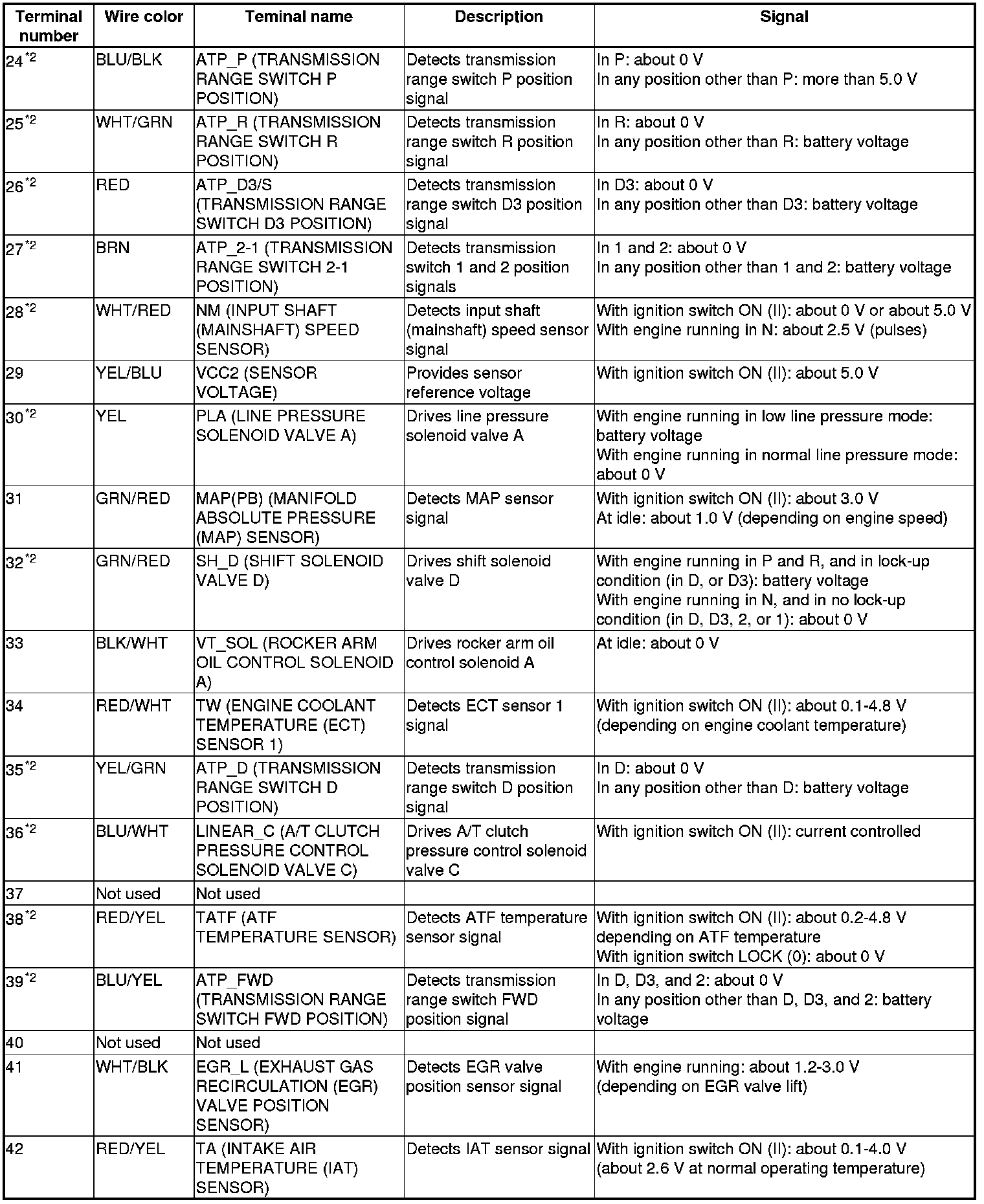

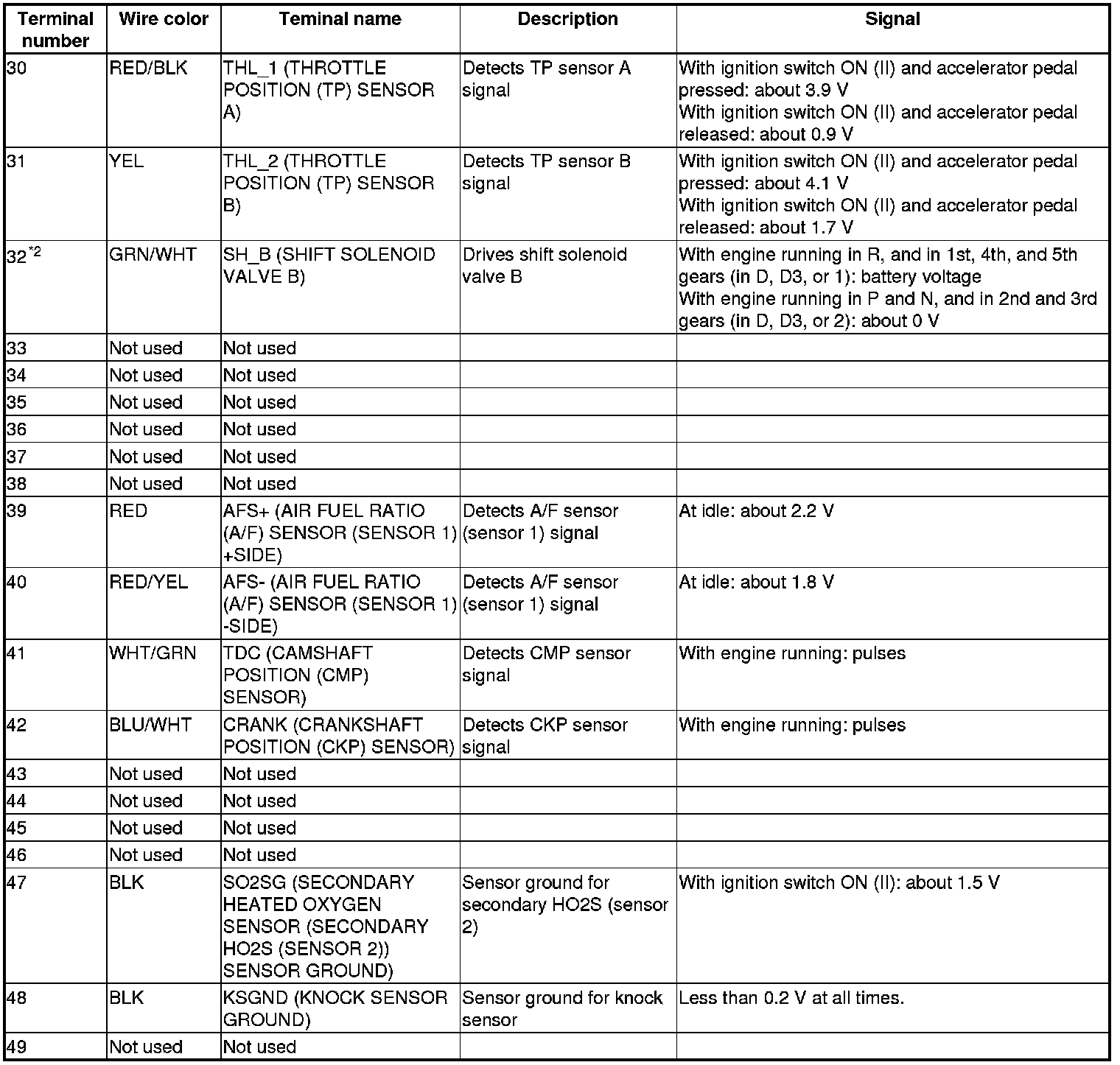

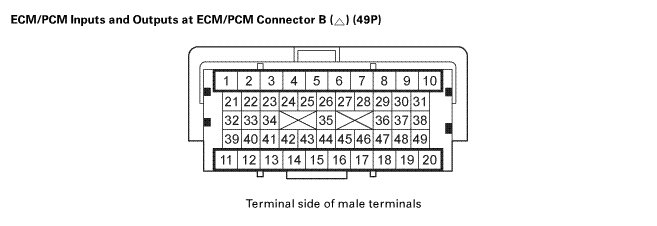

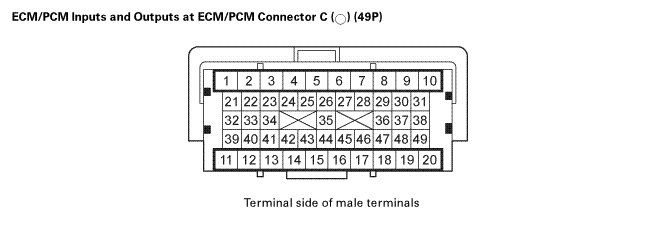

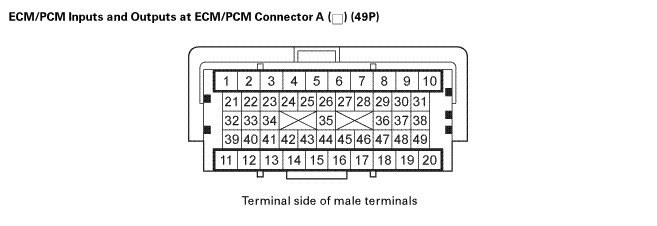

ECM/PCM Connector for Inputs and Outputs














*1: M/T
*2: A/T
*3: Mexico models


















*1: M/T
*2: A/T














*2: A/T
