Engine Mode Switch: Testing and Inspection

ECON Switch Test

Removal

1. Driver's Dashboard Lower Cover

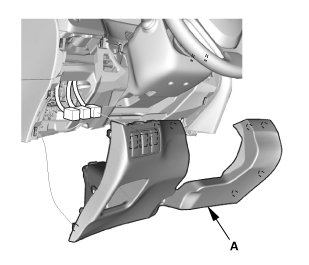

1. Remove the driver's dashboard lower cover (A).

2. Dashboard Subdisplay Visor

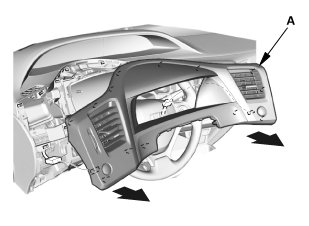

1. Remove the dashboard subdisplay visor (A).

Test

1. ECON Switch - Test

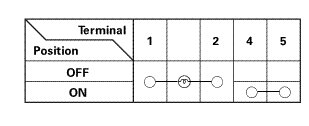

1. Check for continuity between the terminals in each switch position according to the table.

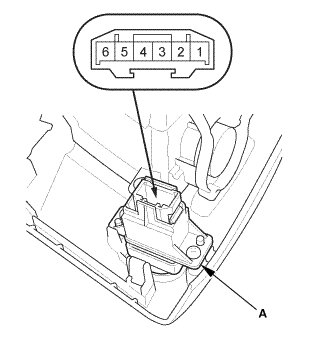

2. If the continuity is not as specified, replace the ECON switch (A).

Installation

1. Dashboard Subdisplay Visor

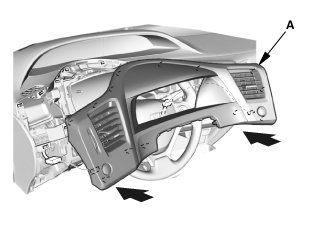

1. Install the dashboard subdisplay visor (A).

2. Driver's Dashboard Lower Cover





1. Install the driver's dashboard lower cover (A).
