Fluids

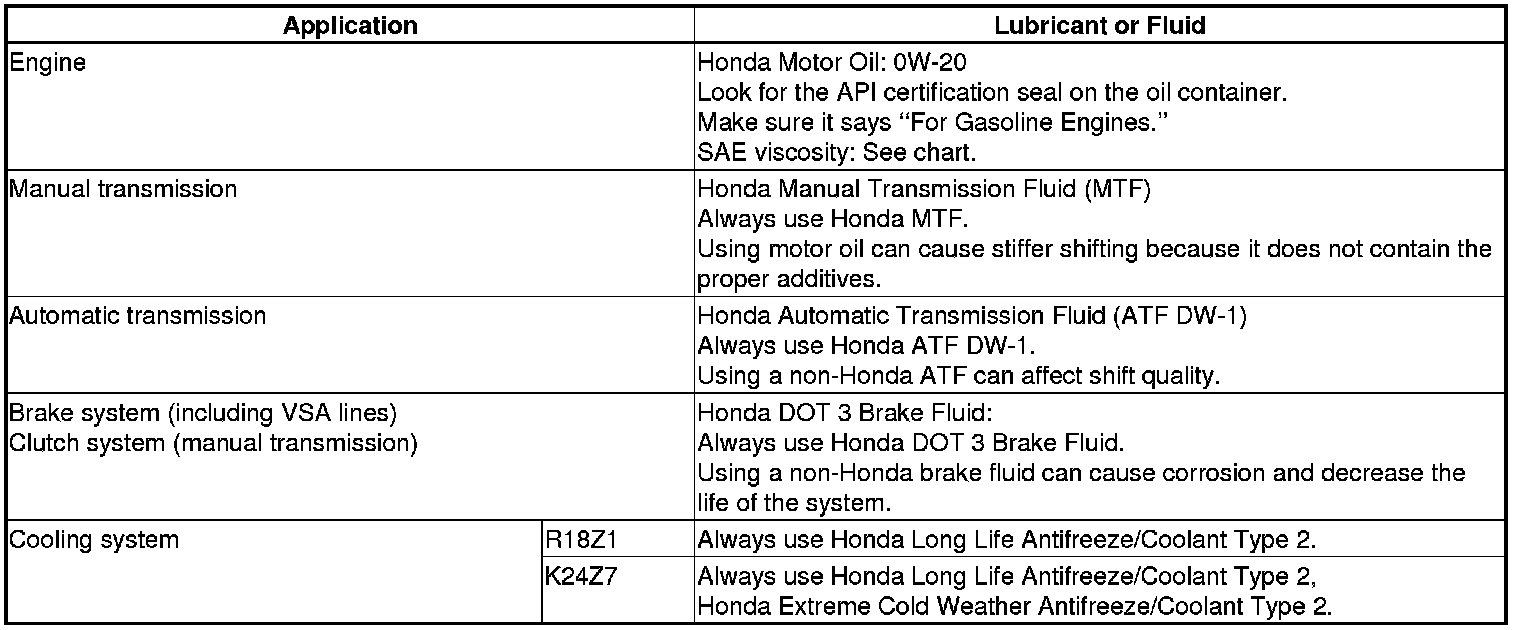

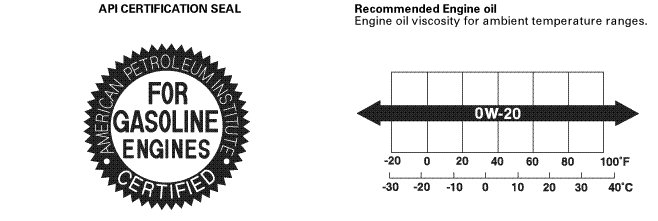

Lubricants and Fluids









For the details of the lubrication points and the type of lubricants to be applied, refer to the illustrated index and the various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.






NOTE:

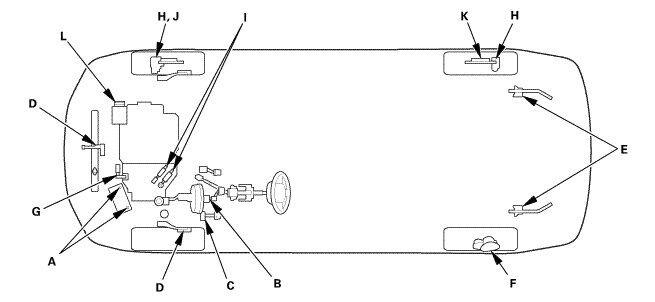

* The illustration shows the 4-door.

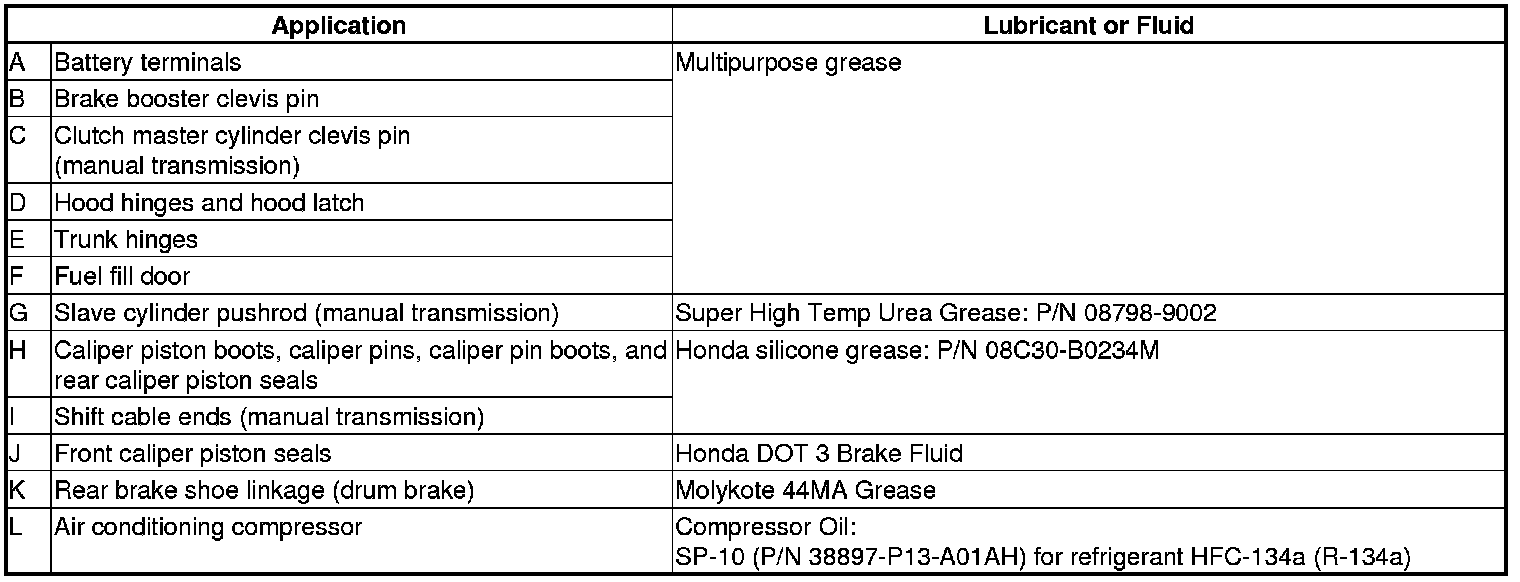

* Lubricate the following areas using the recommended lubricants and fluids.
* In corrosive areas, more frequent lubrication is necessary.
