ATF Replacement

NOTE: Keep all foreign particles out of the transmission.

Warm up the engine to normal operating temperature (the radiator fan comes on), and turn the engine off.
Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
Remove the splash shield.

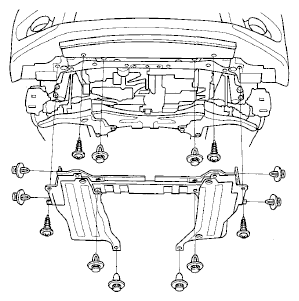

Fig 1: Removing Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the drain plug (A), and drain the automatic transmission fluid (ATF).
NOTE: If a cooler cleaning is done, refer to ATF cooler cleaning (see ATF COOLER CLEANING ).

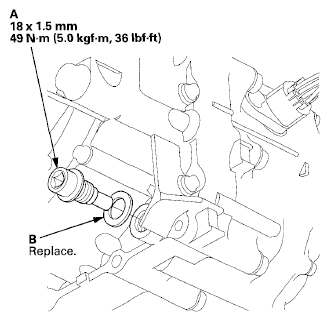

Fig 2: Removing Drain Plug With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B).
Remove the dipstick, and refill the transmission with the recommended fluid into the dipstick guide opening (A). Always use Honda ATF DW-1 Automatic Transmission Fluid (ATF). Using a non-Honda ATF can affect shift quality.
Automatic Transmission Fluid Capacity:

2.5 L (2.6 US qt) at change

5.85 L (6.18 US qt) at overhaul

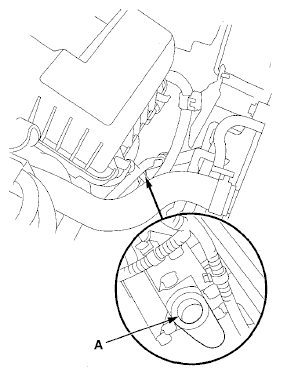

Fig 3: Identifying Dipstick Guide Opening
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the dipstick back into the transmission.
Check the ATF level (see ATF LEVEL CHECK ).
Install the splash shield.
Connect the HDS to the DLC (A).

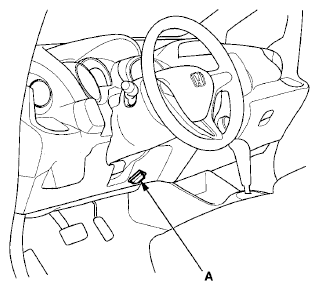

Fig 4: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II), and go to the system selection menu on the HDS. If the HDS does not communicate with the PCM, troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).
Select BODY ELECTRICAL with the HDS.
Select ADJUSTMENT in the GAUGE MENU with the HDS.
Select RESET in the MAINTENANCE MINDER with the HDS.
Select MAINTENANCE SUB ITEM 3 Reset, and reset the ATF life with the HDS.
