CMP Sensor Replacement

CMP Sensor Replacement

1. Remove the cowl cover Service and Repair and the under-cowl panel Service and Repair.

2. Remove the air cleaner Service and Repair.

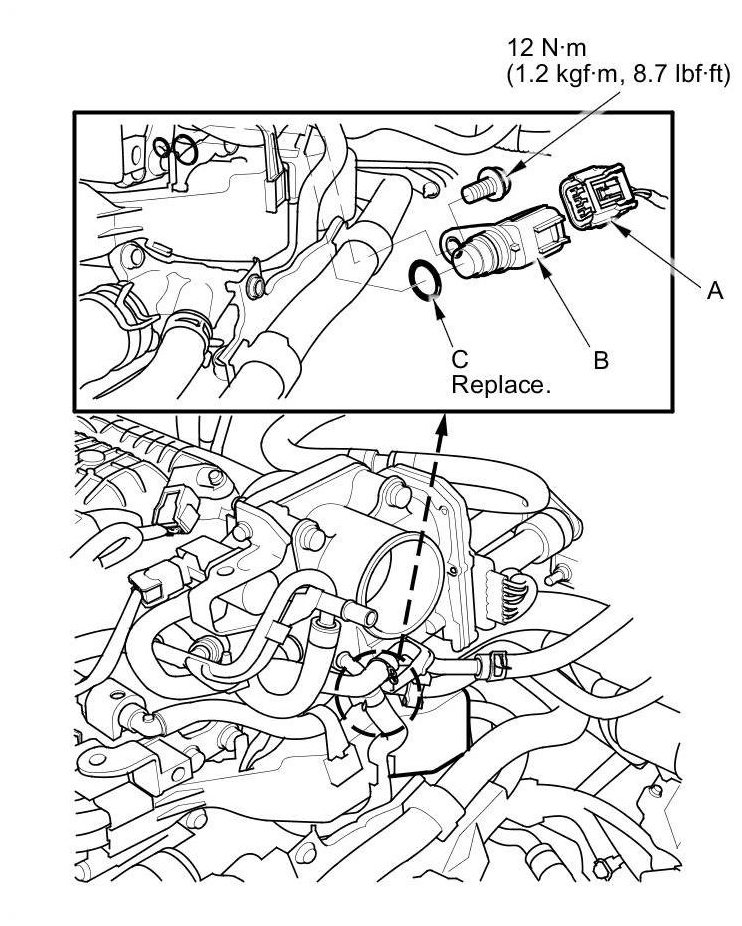

3. Disconnect the CMP sensor connector (A).





4. Remove the CMP sensor (B).

5. Install the parts in the reverse order of removal with a new O-ring (C).
