CKP Sensor Replacement

CKP Sensor Replacement

1. Raise the vehicle on a lift Service and Repair.

NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.

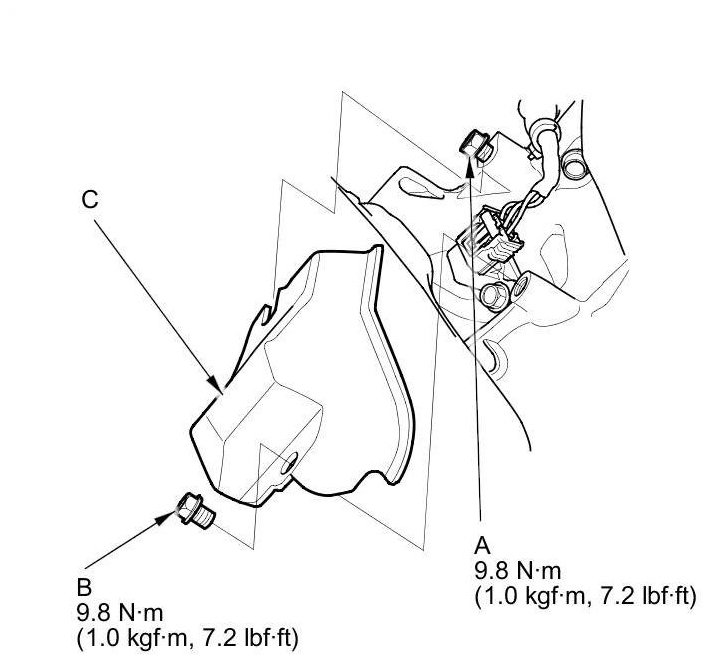

2. Loosen the bolt (A). Remove the bolt (B) and the CKP sensor cover (C).

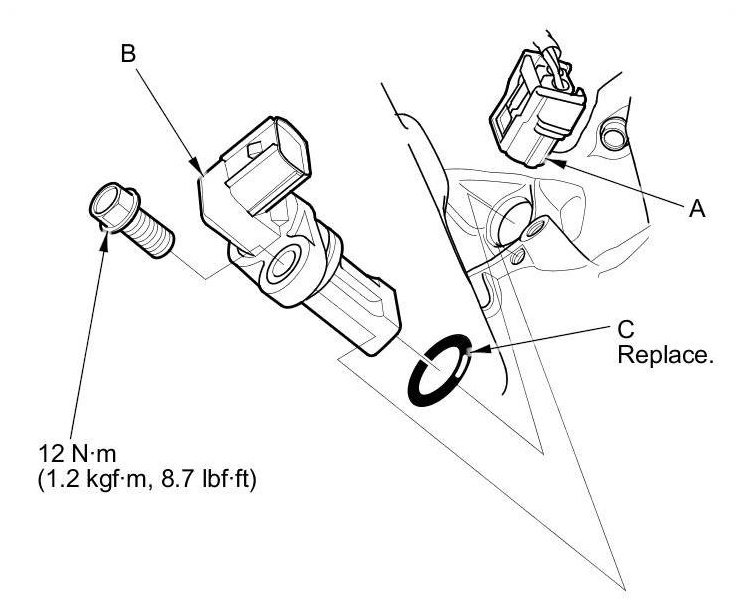

3. Disconnect the CKP sensor connector (A).





4. Remove the CKP sensor (B).

5. Install the parts in the reverse order of removal with a new O-ring (C).

6. Do the CKP pattern clear/CKP pattern learn procedure.

7. Check the engine oil level, and add more oil if needed.
