SD Module Removal/Installation

NOTE:

Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
Do not work in a dusty or dirty place.
Discharge static electricity from your body before and during the work.
Do not touch the circuit board(s) with your bare hands.
Do not work with dirty hands.
Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it, wipe it off thoroughly).
Eject the discs before removing the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism.
If you are replacing the audio-navigation unit, write down the audio presets (if possible), then enter them into the new audio-navigation unit.
If the audio-navigation unit is replaced or disconnected, a Map Matching must be done (see MAP MATCHING ).

Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
Loosen the screws (A), then put out the SD module (B) with the screws from the audio-navigation unit (C).

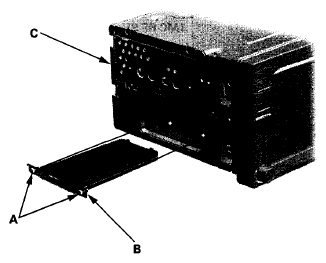

Fig 1: Identifying Screws, SD Module And Audio-Navigation Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the SD module in the reverse order of removal.
NOTE: Make sure the SD module is properly aligned when installing the SD module.
