Cowl Cover Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

1. Remove the windshield wiper arms (see WIPER ARM REPLACEMENT ).
2. Detach the clips with a clip remover from the cowl cover (A), then disconnect the windshield washer tube (B).

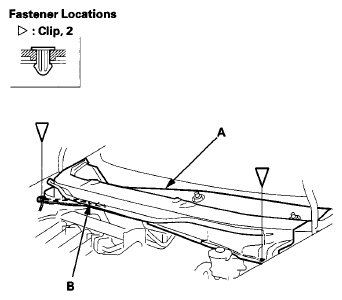

   Fig 1: Identifying Windshield Washer Tube, Cowl Cover And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Carefully pull the windshield side edge of the cowl cover (A) upward only enough to detach the clips, and release the forward hooks (B) by sliding the cowl cover forward, then remove the cover. Be careful not to break the hooks.

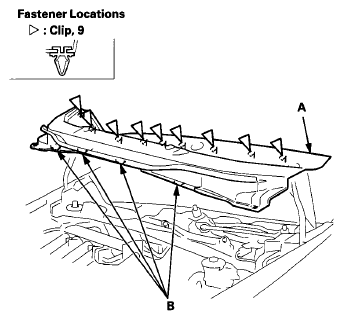

   Fig 2: Identifying Cowl Cover Clips And Hooks

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Hood hinge cover replacement

4. If necessary, remove the hood hinge covers (A) on both sides.
   1. Detach the clips (B) from the body.
   2. Release the hooks (C), and detach the clips (D), then remove the covers.

   Left side

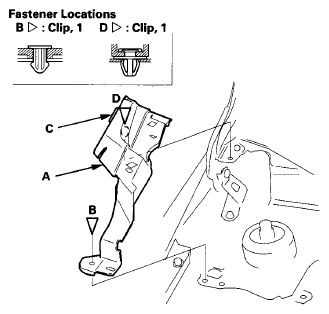

   Fig 3: Identifying Hood Hinge Covers And Clips (Left Side)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Right side

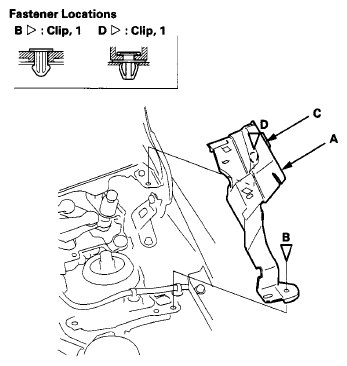

   Fig 4: Identifying Hood Hinge Covers And Clips (Right Side)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Under-cowl panel removal

5. If necessary, remove the bolts, then remove the under-cowl panel (A).

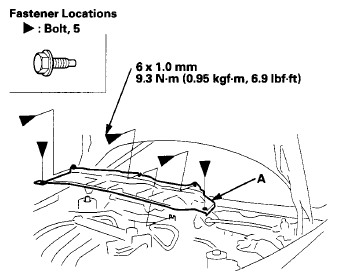

   Fig 5: Under-Cowl Panel And Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install all of the removed parts in the reverse order of removal, and note these items:
   • If the clips are damaged or stress-whitened, replace them with new ones.
   • Push the clips and the hooks into place securely.
   • Make sure the washer tube is connected securely.
