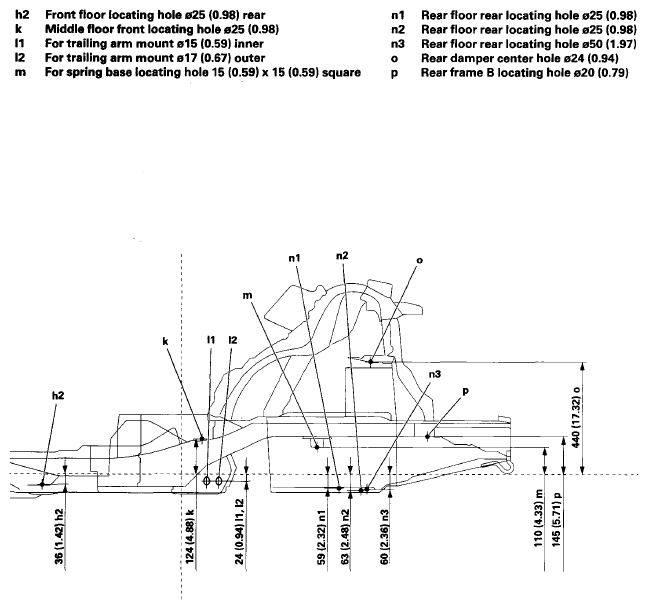

Side View
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) (If HVAC maintenance is required)
The Insight SRS includes a driver's airbag in the steering wheel hub, a front passenger's airbag in the dashboard above the glove box, seat belt tensioners in the front seat belt retractors, side curtain airbags in the sides of the roof, and side airbags in the front seat-backs. Information necessary to safely service the SRS is included in this Service Information. Items marked with an asterisk (*) on the contents information include or are located near SRS components. Servicing, disassembling, or replacing these items requires special precautions and tools, and should be done by an authorized Honda dealer.
- To avoid rendering the SRS inoperative, which could lead to personal injury or death in the event of a severe frontal or side collision, all SRS service work should be done by an authorized Honda dealer.
- Improper service procedures, including incorrect removal and installation of the SRS, could lead to personal injury caused by unintentional deployment of the airbags, side airbags, side curtain airbags, and/or seat belt tensioners.
- Do not bump or impact the SRS unit, front impact sensors, side impact sensors, or rear safing sensor especially when the ignition switch is in ON (II), or for at least 3 minutes after the ignition switch is turned to LOCK (0); otherwise, the system may fail in a collision, or the airbags may deploy.
- SRS electrical connectors are identified by yellow color coding. Related components are located in the steering column, center console, dashboard, in the dashboard above the glove box, in the front seats, in the roof side, and around the floor. Do not use electrical test equipment on these circuits.
INTEGRATED MOTOR ASSIST (IMA) SYSTEM (If HVAC maintenance is required)
IMA components are located in this area. The IMA is a high-voltage system. The high voltage cables and their covers are identified by orange coloring. The safety labels are attached to high voltage and other related parts (see DANGER/WARNING/CAUTION LABEL LOCATIONS ). You must be familiar with the IMA system before working around it. Make sure you have read the Service Precautions in the IMA information before doing repairs or service (see SERVICE PRECAUTIONS ).
