VSA (Vehicle Stability Assist) System Features
>>
Understeer control
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Understeer control
Applies the brake to the front and rear inside wheels
Controls the engine torque when accelerating

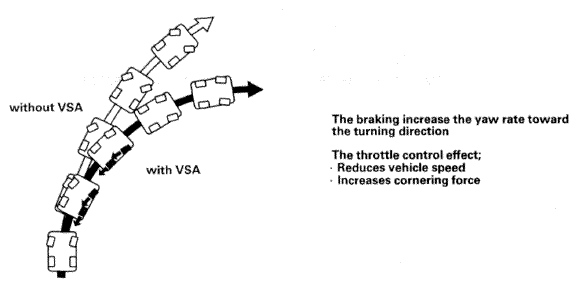

Fig 1: Vehicle Stability Assist System Chart - Understeer Control
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
