EGR Pipe Removal and Installation: Removal

Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).
Remove the bolts (A) and the nuts (B).

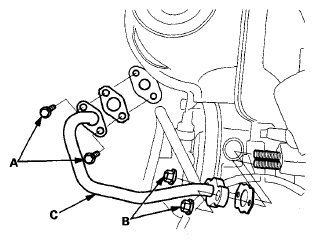

Fig 1: Identifying EGR Pipe, Nuts And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR pipe (C).
