Audio Unit Connector B (20P)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

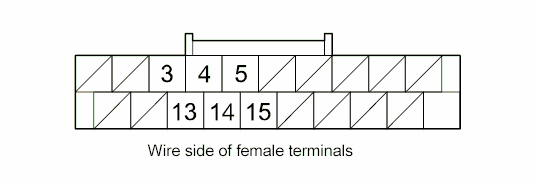

Fig 1: Identifying Audio Unit B (20P) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TERMINAL NAME REFERENCE CHART

Cavity

Wire Color

Terminal Name

Connect to

BRN

AUX S-GND

Auxiliary jack assembly

GRY⁽¹⁾

AUX SH-GND

Shield for terminals No. 3, No. 13, and No. 14

WHT

AUX GND

Auxiliary jack assembly

B13

YEL

AUX LCH

Auxiliary jack assembly

B14

ORN

AUX RCH

Auxiliary jack assembly

B15

PUR

AUX DET

Auxiliary jack assembly

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circiut digram.
