Audio Unit Connector G (3P)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

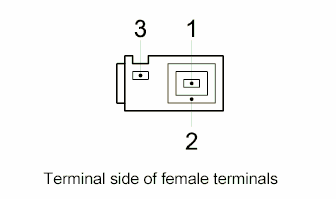

Fig 1: Identifying Audio Unit G (3P) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TERMINAL NAME REFERENCE CHART

Cavity	Wire Color	Terminal Name	Connect to
G1	BLK	RFIN	AM/FM antenna
G2	BLK	RFSH	Shield for terminal No. 1
G3	BLK	ANT+B	AM/FM antenna

Fig 1: Identifying Audio Unit G (3P) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TERMINAL NAME REFERENCE CHART

Cavity	Wire Color	Terminal Name	Connect to
G1	-	RF IN	AM/FM antenna
G2	-	RF SH	Shield for terminal No. 1
G3	-	ANT +B	AM/FM antenna
