Rocker Arm Oil Pressure Sensor A Removal/Installation




Rocker Arm Oil Pressure Sensor A Removal/Installation

1. Remove the engine cover.

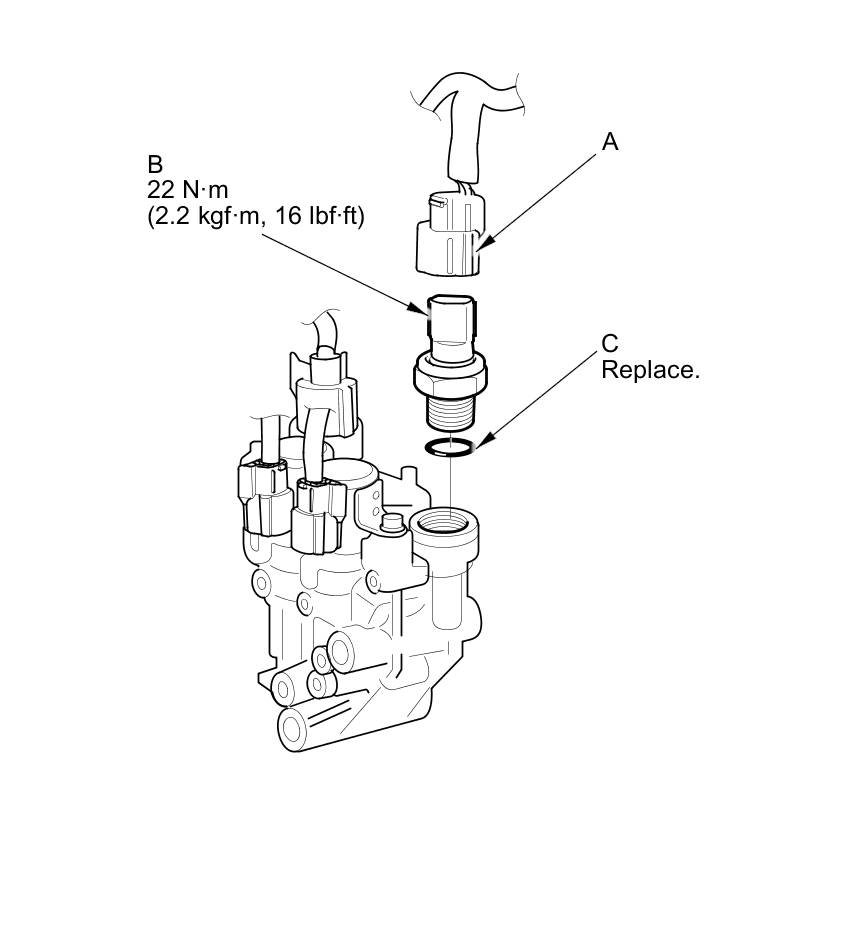

2. Disconnect the rocker arm oil pressure sensor A connector (A).





3. Remove rocker arm oil pressure sensor A (B).

4. Install rocker arm oil pressure sensor A in the reverse order of removal with a new O-ring (C).
