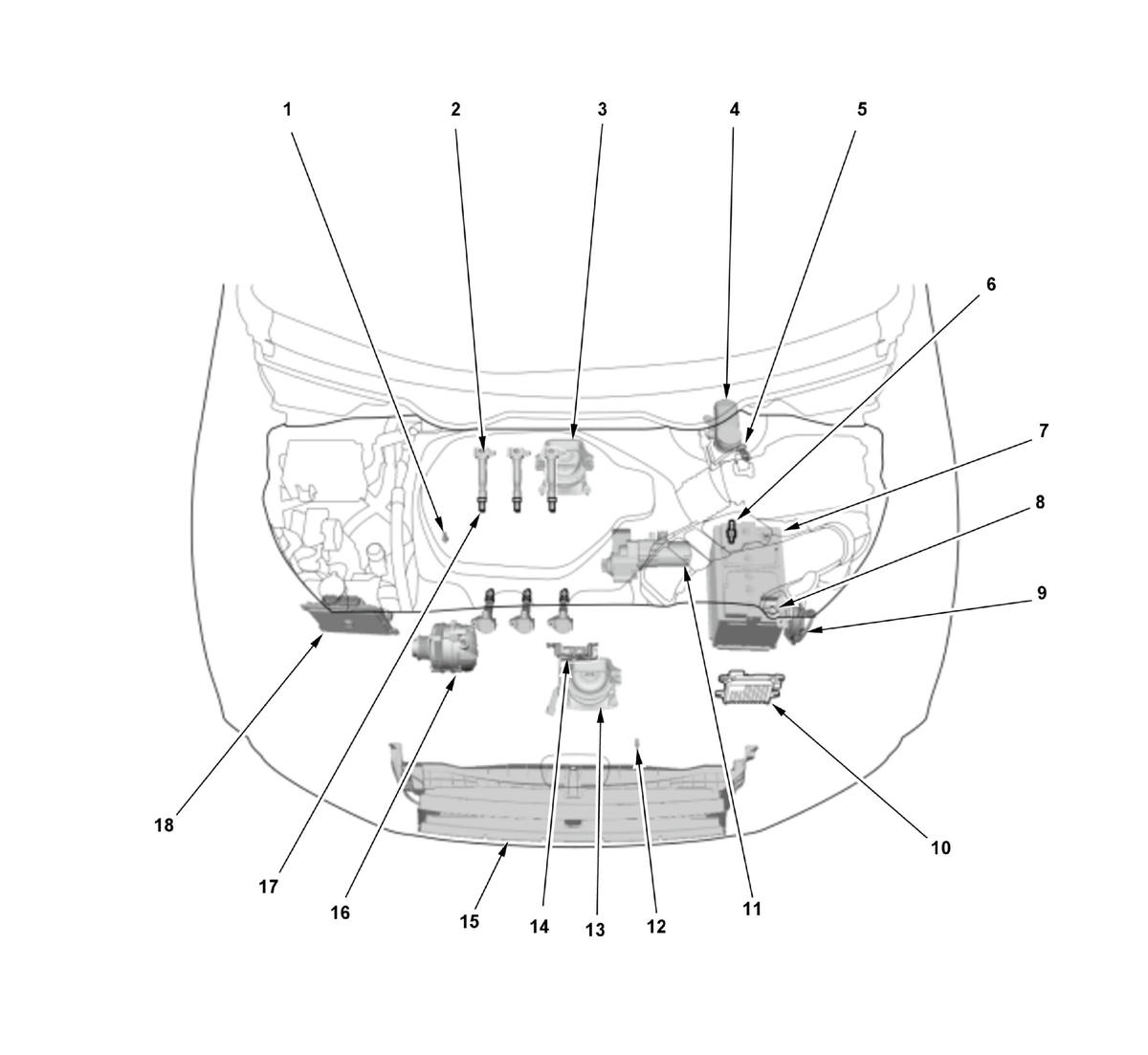

Engine Compartment 1

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HONDA, U.S.A., INC.

No.	Component	Related System
1	Rocker Arm Oil Pressure Sensor	Engine Lubrication Fuel and Emissions Systems
2	Ignition Coils	Ignition System
3	Rear Engine Mount	Active Control Engine Mount (ACM)
4	Brake Fluid Level Switch	Gauges
5	Brake Booster Pressure Sensor	Brake Booster Pressure Monitoring System
6	Countershaft Speed Sensor (10-speed Automatic)	Automatic Transmission Cruise Control Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) Road Departure Mitigation Auto High-Beam (High-Beam Support System) Blind Spot Information (BSI) System Cross Traffic Monitor
7	12 Volt Battery	Starting System Charging System 12 Volt Battery 12 Volt Battery Management System
8	12 Volt Battery Sensor	12 Volt Battery 12 Volt Battery Management System
9	12 Volt Battery Fan Motor	12 Volt Battery
10	Transmission Control Module (TCM) (10-speed Automatic)	Automatic Transmission Automatic Dimming Mirrors Driving Position Memory System (DPMS) HondaVACTM Keyless Access System Keyless/Power Door Locks/Security System Power Sliding Doors Power Tailgate Cruise Control Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) Road Departure Mitigation Auto High-Beam (High-Beam Support System) Blind Spot Information (BSI) System Cross Traffic Monitor
11	Starter	Starting System
12	Engine Coolant Temperature (ECT) Sensor 2	Cooling System Fuel and Emissions Systems
13	Front Engine Mount	Active Control Engine Mount (ACM)
14	Hood Latch Switch	Keyless/Power Door Locks/Security System
15	Shutter Grille	Fuel and Emissions Systems
16	Alternator	Charging System
17	Spark Plugs	Ignition System
18	Powertrain Control Module (PCM)	Active Control Engine Mount (ACM) Fuel and Emissions Systems Brake Booster Pressure Monitoring System Climate Control 12 Volt Battery 12 Volt Battery Management System Driving Position Memory System (DPMS) HondaVACTM Keyless Access System Power Sliding Doors Cruise Control Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) Road Departure Mitigation
