Engine Compartment 2
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

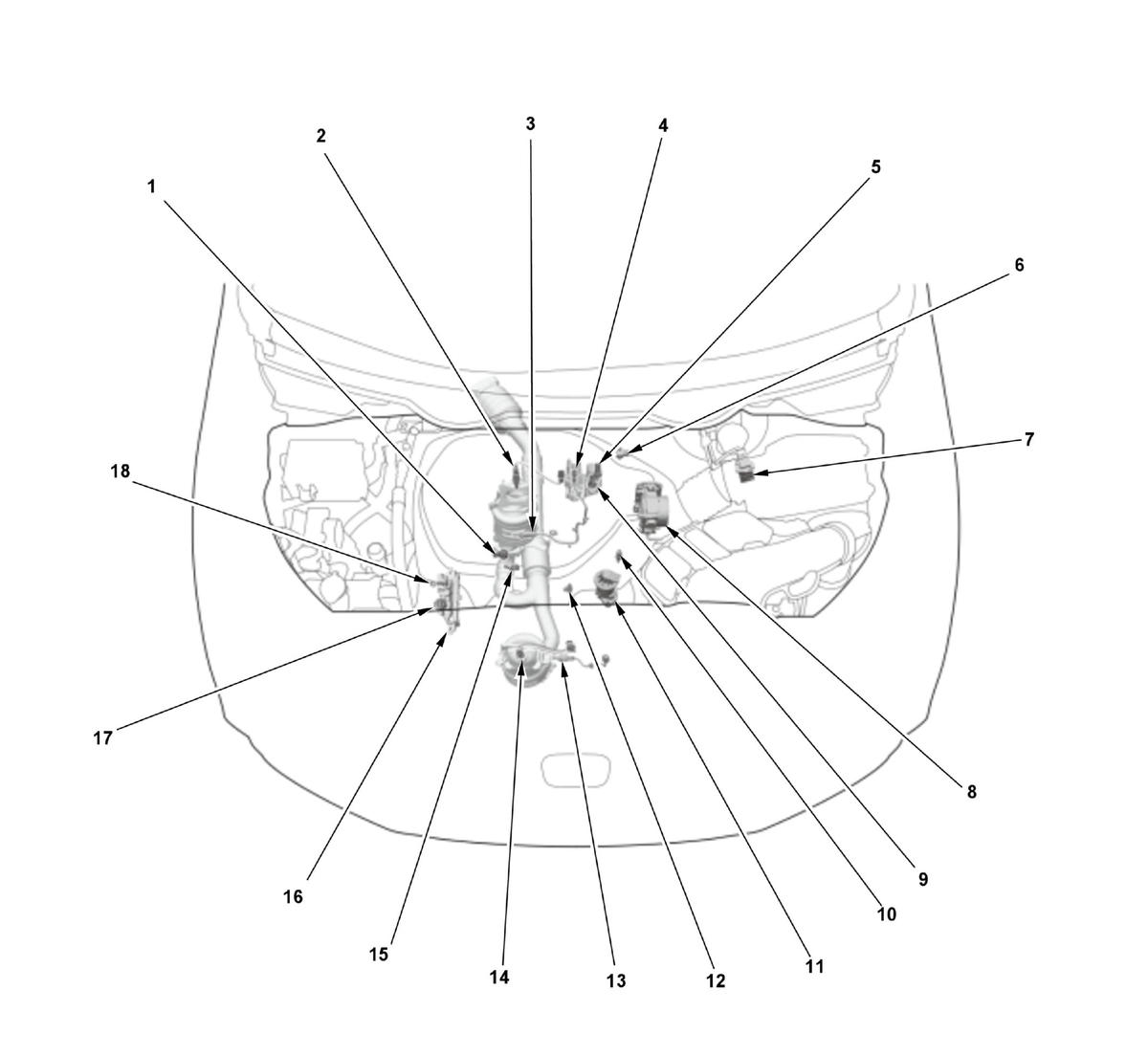

Engine Compartment 2 Legend
| No. | Component | Related System |
|---|---|---|
| 1 | Knock Sensor 1 (Bank 1) | Fuel and Emissions Systems |
| 2 | Rear Air Fuel Ratio (A/F) Sensor (Bank 1, Sensor 1) | Fuel and Emissions Systems |
| 3 | Rear Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 1, Sensor 2) | Fuel and Emissions Systems |
| 4 | Rear Rocker Arm Oil Control Valve
|
|
| 5 | Rocker Arm Oil Pressure Switch A (Bank 1) | Fuel and Emissions Systems |
| 6 | Manifold Absolute Pressure (MAP) Sensor | Fuel and Emissions Systems |
| 7 | Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor | Fuel and Emissions Systems |
| 8 | Throttle Body
|
|
| 9 | Rocker Arm Oil Pressure Switch B (Bank 1) | Fuel and Emissions Systems |
| 10 | Engine Coolant Temperature (ECT) Sensor 1 | Fuel and Emissions Systems |
| 11 | Exhaust Gas Recirculation (EGR) Valve | Fuel and Emissions Systems |
| 12 | Crankshaft Position (CKP) Sensor | Fuel and Emissions Systems |
| 13 | Front Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 2, Sensor 2) | Fuel and Emissions Systems |
| 14 | Front Air Fuel Ratio (A/F) Sensor (Bank 2, Sensor 1) | Fuel and Emissions Systems |
| 15 | Knock Sensor 2 (Bank 2) | Fuel and Emissions Systems |
| 16 | Front Rocker Arm Oil Control Valve
|
|
| 17 | Rocker Arm Oil Pressure Switch A (Bank 2) | Fuel and Emissions Systems |
| 18 | Camshaft Position (CMP) Sensor | Fuel and Emissions Systems |
