Electric Load Sensor: Service and Repair

ELD Replacement

1. Do the battery terminal disconnection procedure Procedures.

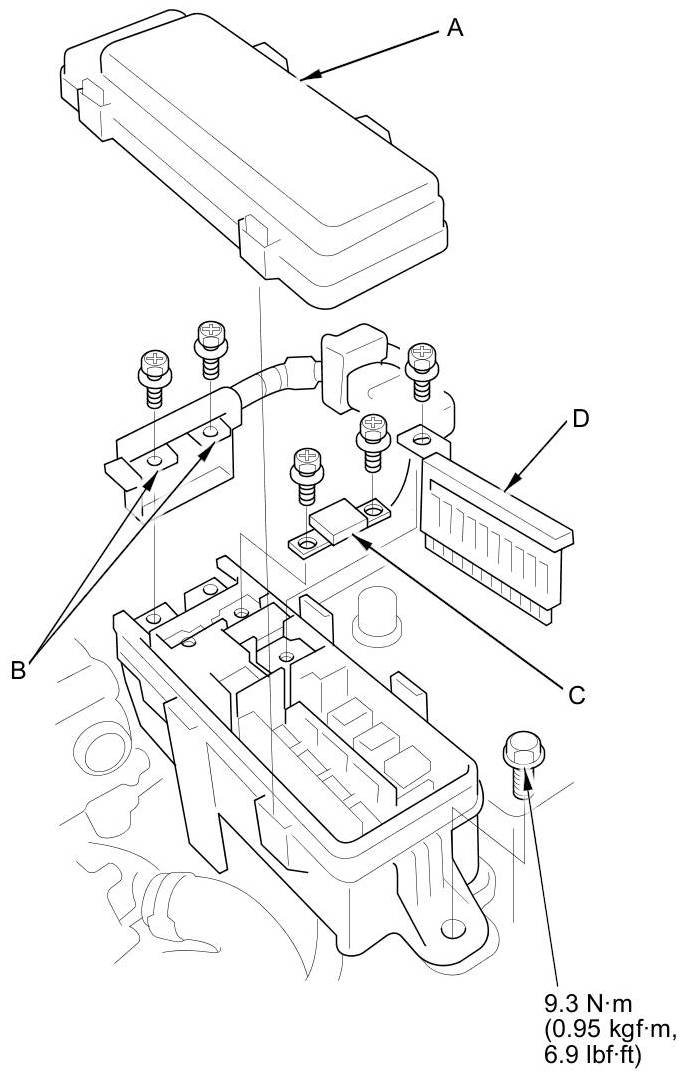

2. Remove the upper cover (A), then remove the two positive (+) terminals (B).





3. Remove the fuses (C and D).

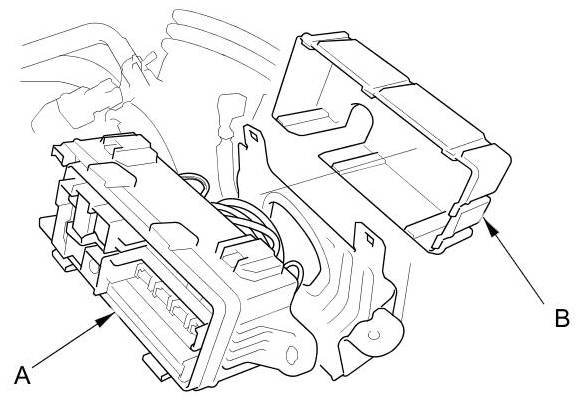

4. Remove the main under-hood fuse box (A) from the bracket.





5. Remove the lower cover (B).

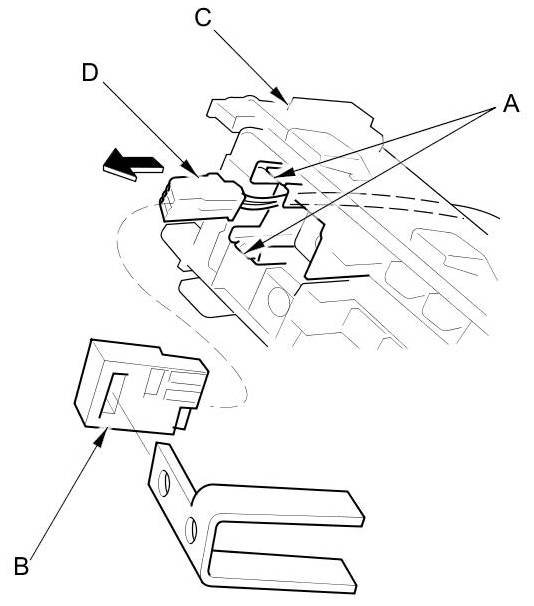

6. Release the two lock tabs (A), then pull the ELD (B) out from the main under-hood fuse box (C).

NOTE: Take care not to damage wire harness.





7. Disconnect the ELD 3P connector (D).

8. Install the parts in the reverse order of removal.

9. Do the battery terminal reconnection procedure Procedures.
