Navigation Function Selector Switch: Service and Repair

Navigation Switch Panel Removal/Installation

1. Remove the dashboard center panel Dashboard Center Panel Removal/Installation.

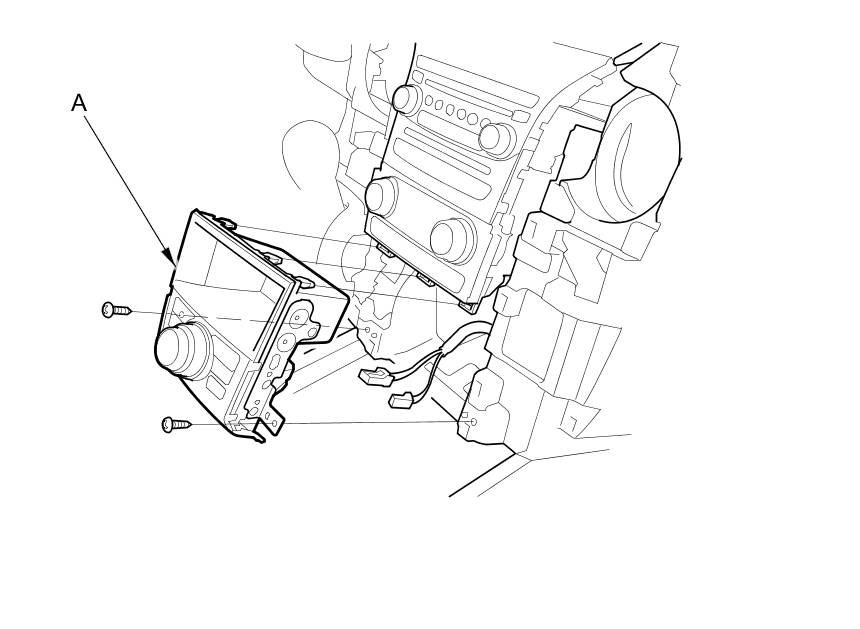

2. Remove the screws, then pull out the navigation switch panel and the center pocket (A).





3. Disconnect the connectors and remove the navigation switch panel and the center pocket.

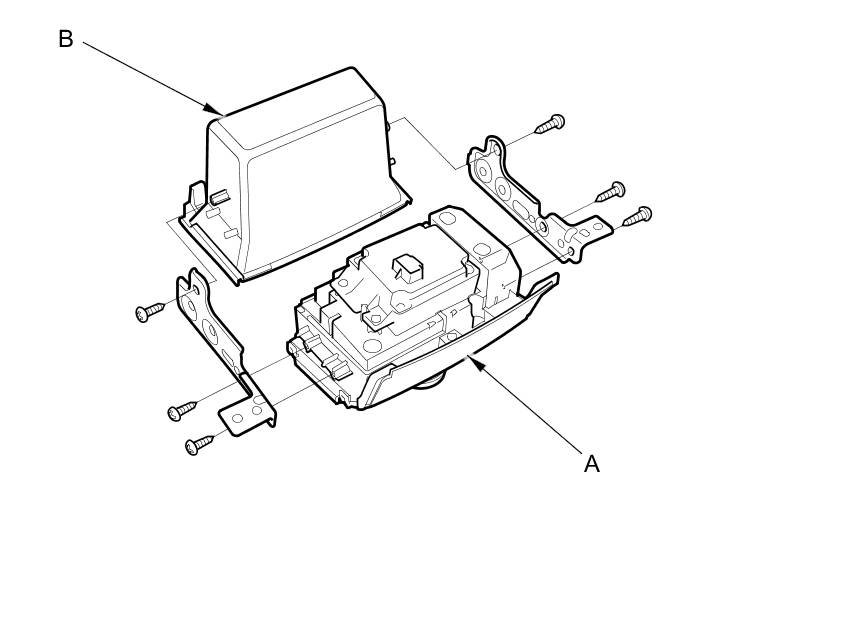

4. Remove the screws and brackets, then separate the navigation switch panel (A) and the center pocket (B).





5. Install the navigation switch panel in the reverse order of removal.
