Solar Sensor: Service and Repair

Sunlight Sensor Replacement

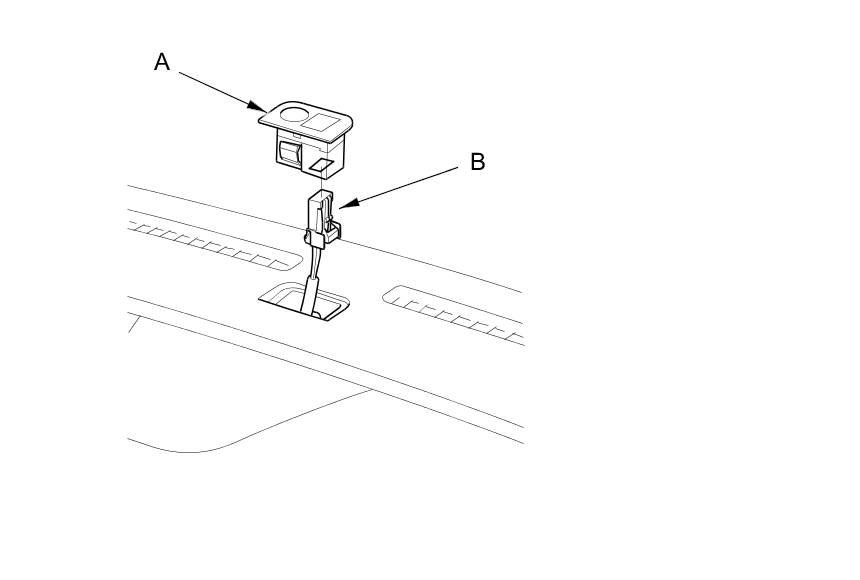

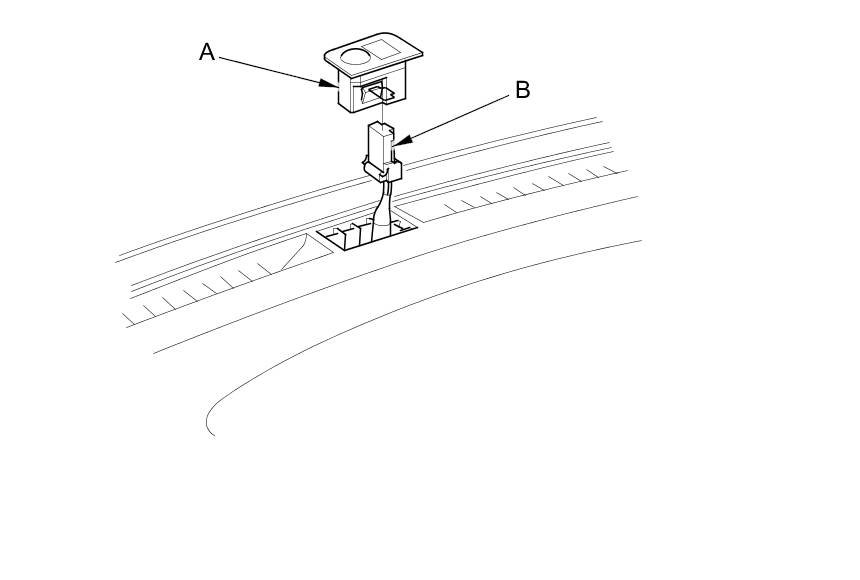

1. Remove the sunlight sensor (A) from the dashboard, then disconnect the 5P connector (B). Be careful not to damage the sensor and the dashboard.





2. Install the sensor in the reverse order of removal.
