Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Raise the vehicle on a lift.

2. Remove the EVAP canister cover.

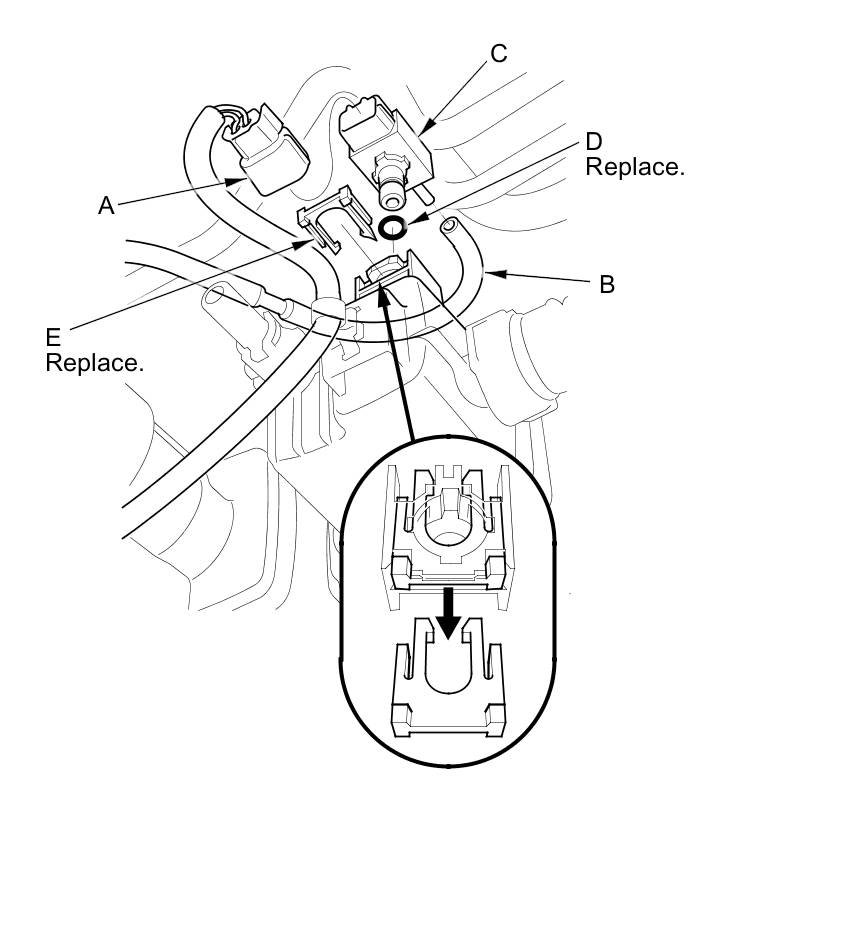

3. Disconnect the FTP sensor connector (A).






4. Disconnect the hose (B), and remove the FTP sensor (C).

5. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).

NOTE: Do not coat the O-ring with oil.
