C562 Connector View (Factory-Installed Trailer Lighting Connector)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

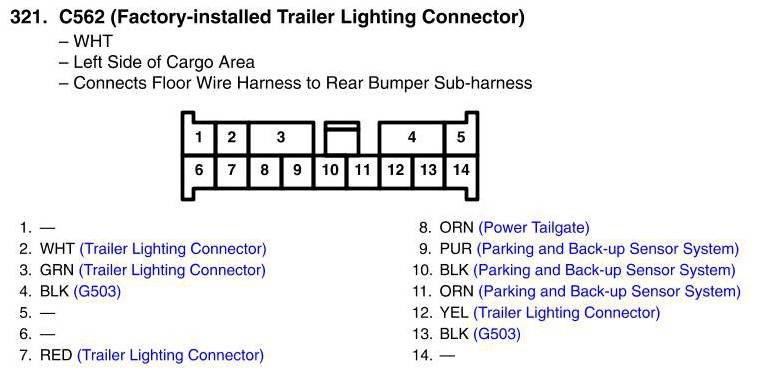

C562 Connector View (Factory-Installed Trailer Lighting Connector)
