Ignition Switch Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
2. Remove the left front door sill trim and left kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
3. Disconnect the 6P connector (A) from the under-dash fuse/relay box.
   Fig 1: Identifying Under-Dash Fuse/Relay Box 6P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each switch position according to the table.

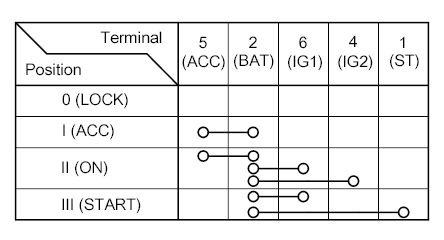

   Fig 2: Terminal Continuity Reference Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the continuity is not as specified, replace the ignition switch (see Ignition Switch Replacement ).
6. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
