Shift Lever Disassembly/Reassembly

NOTE: Do not wipe off the grease that is applied to the portion of the shift lever marked with an asterisk (*) when you disassemble or assemble it because a special grease is used.

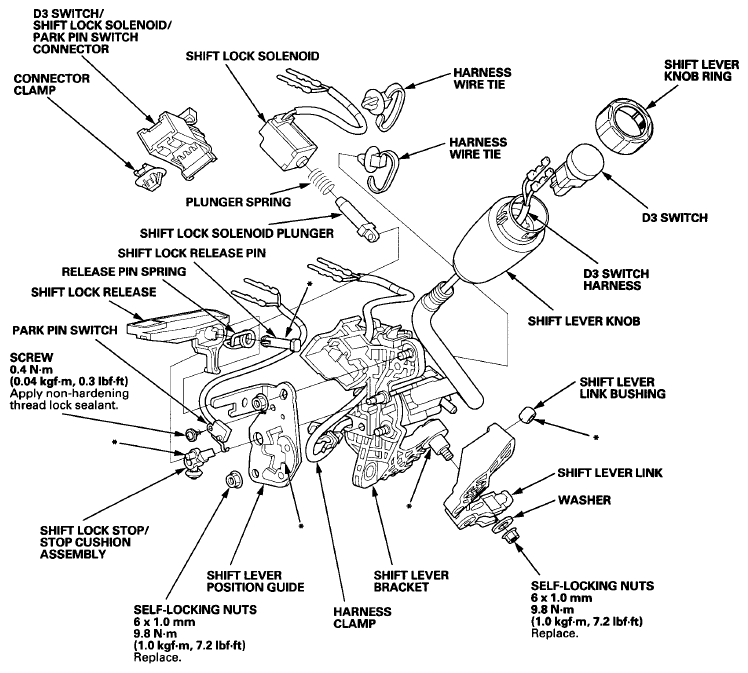

Fig 1: Disassembled View Of Shift Lever

Courtesy of AMERICAN HONDA MOTOR CO., INC.
