Special Tools

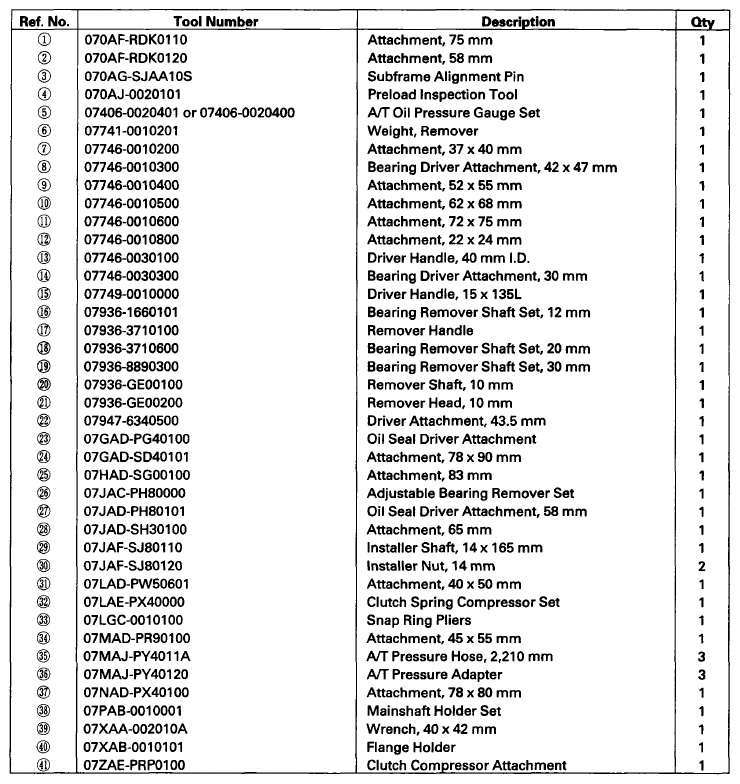

Fig 1: Special Tools Description Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

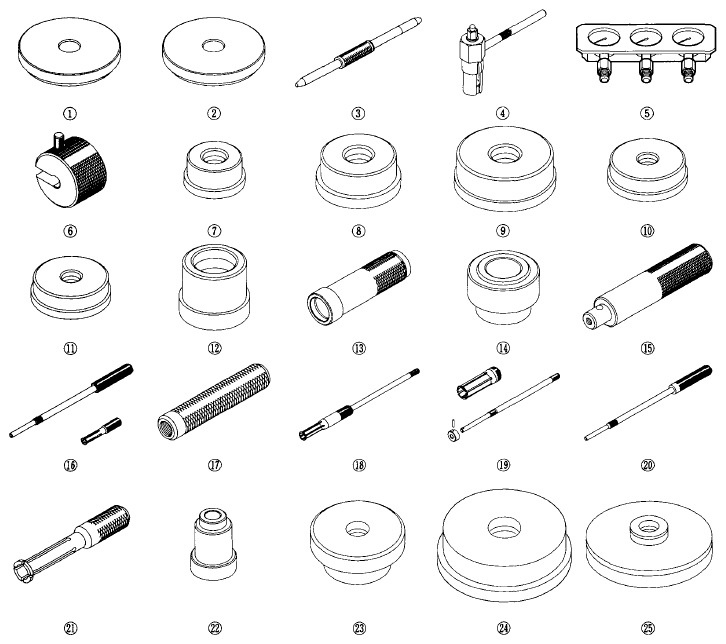

Fig 2: Identifying Special Tools (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

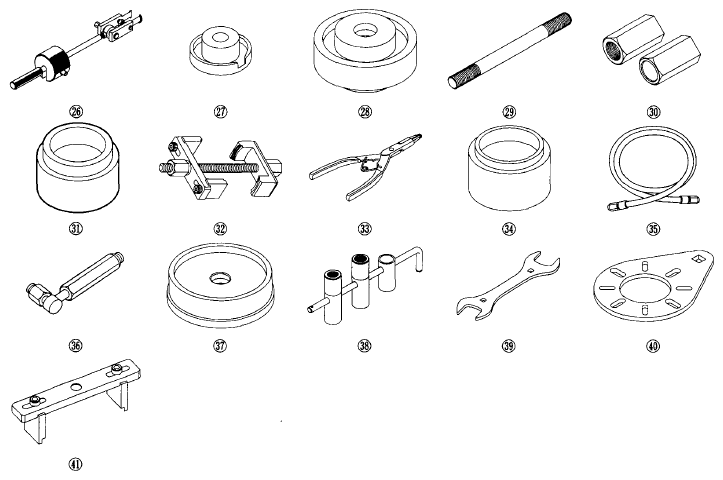

Fig 3: Identifying Special Tools (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
