Under-Dash Fuse/Relay Box

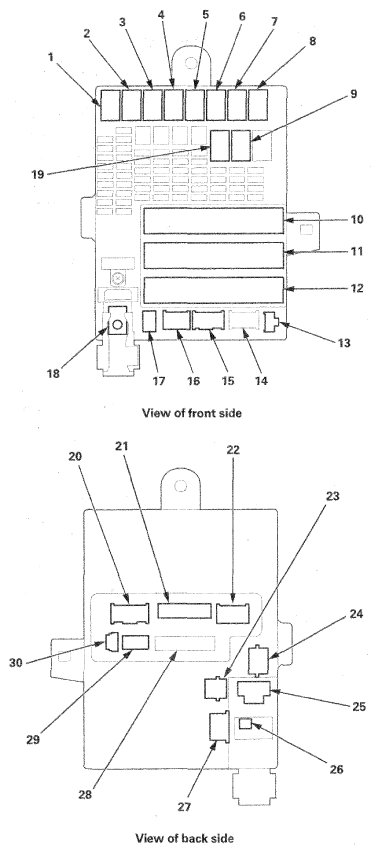

UNDER-DASH FUSE/RELAY BOX REFERENCE TERMINALS
| Socket | Ref | Terminals | Connects to |
|---|---|---|---|
| A | 10 | 36 | Right engine compartment wire harness |
| A/F sensor relay | 3 | 4 | |
| B | 11 | 36 | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (BF) ) |
| Blower motor relay | 2 | 4 | |
| D | 12 | 49 | Driver's side wire harness |
| Electronic throttle control system (ETCS) control relay | 7 | 4 | |
| F | 17 | 12 | Driver's door wire harness (see DRIVER'S DOOR WIRE HARNESS (DA) ) |
| G | 16 | 6 | Driver's door wire harness (see DRIVER'S DOOR WIRE HARNESS (DA) ) |
| H | 16 | 8 | Roof wire harness (see ROOF WIRE HARNESS (BK) ) |
| Ignition coil relay | 5 | 4 | |
| J (optional connector) | 14 | 8 | Not used |
| Lighting relay 1 | 4 | 4 | |
| Lighting relay 2 | 19 | 4 | |
| M (MICU service check connector) | 13 | 3 | |
| N | 20 | 10 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| PGM-FI main relay 1 (Fl MAIN) | 6 | 4 | |
| Power window relay (P/W) | 1 | 4 | |
| Q | 21 | 34 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| R | 22 | 8 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| Rear window defogger relay | 8 | 4 | |
| Starter cut relay (ST CUT) | 9 | 4 | |
| T (SRS) | 30 | 4 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| Y | 29 | 16 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| AA | 28 | 28 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| AB | 24 | 3 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| AC | 25 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| AD | 23 | 1 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| AE | 27 | 3 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| AF (Electrical load detector) | 26 | 3 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) ) |
| T9 | 18 | -- | Left engine compartment wire harness |
