With navigation

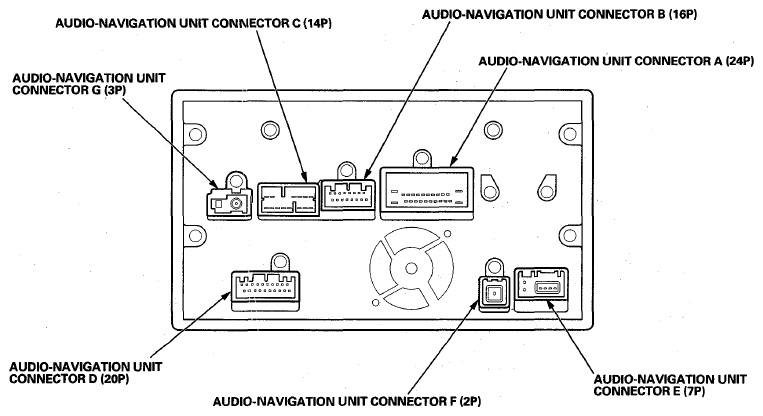

Fig 1: Identifying Audio Unit Connector Terminals - With Navigation
G08083046Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Refer to the navigation section for audio-navigation unit connector D and F inputs and outputs NAVIGATION SYSTEM CONNECTOR LOCATION ).

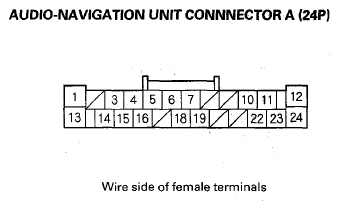

Fig 2: Identifying Audio-Navigation Unit Connector A (24P) Terminals
G08083047Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
A1 RED Dashlights brightness controller (ILL-)
A3 BLU Data link connector (DLC) (K-line)
A4 GRN Security control unit (MICU) (SCTY)
A5 WHT Audio remote switch (REMOTE GND)
A6 ORN Right rear door speaker (RR R-)
A7 BLU Right rear door speaker (RR R+)
A10 BRN Left rear door speaker (RR L-)
A11 GRY Left rear door speaker (RR L+)
A12 BLK Body ground to G503 (GND)
A13 GRY No. 29 (10 A) fuse in the under-dash fuse/relay box (ILL +)
A14 ORN No. 14 (7.5 A) fuse in the under-dash fuse/relay box (ACC)
A15 BLU ECM/PCM (Vehicle speed pulse) (VSP)
A16 PNK Audio remote switch (REMOTE)
A18 RED Front passenger's door speaker (-) (FR R-)
A19 BRN Front passenger's door speaker (+) (FR R+)
A22 LT GRN Driver's door speaker (-) (FR L-)
A23 LT BLU Driver's door speaker (+) (FR L+)
A24 PNK No. 1 (10 A) fuse in the under-dash fuse/relay box(+B)

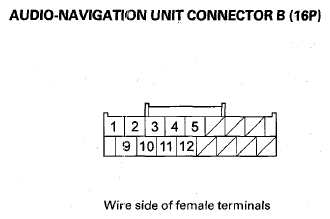

Fig 3: Identifying Audio-Navigation Unit Connector B (16P) Terminals
G08083048Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
B1 YEL Auxiliary jack assembly (AUX L)
B2 BLU Auxiliary jack assembly (AUX SIG GND)
B3 GRN Auxiliary jack assembly (AUX R)
B4 PNK HandsFreeLink control unit (TELEM SIG +)
B5 GRY(1) Shield for terminals No. 4 and No. 12 (TELEM SIG SIG)
B9 WHT Auxiliary jack assembly (AUX DET)
B10 BRN Auxiliary jack assembly (AUX GND)
B11 GRY(1) Sheild for terminals No. 1, No. 2, and No. 3 (AUX SH GND)
B12 BLU HandsFreeLink control unit (TELEM SIG-)
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

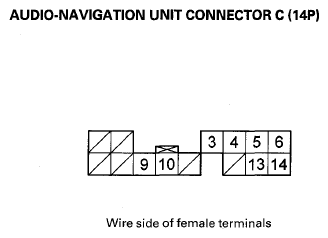

Fig 4: Identifying Audio-Navigation Unit Connector C (14P) Terminals
G08083049Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
C3 GRY(1) Sheild for terminals No. 9 and No. 10(GA-NET BUS SH)
C4 GRY(1) Sheild for terminals No. 5, No. 6, No. 13, and No. 14 (AUDIO SH)
C5 BLK HandsFreeLink control unit (AUDIO R +)
C6 WHT HandsFreeLink control unit (AUDIO L+)
C9 YEL HandsFreeLink control unit (GA-NET BUS+)
C10 GRN HandsFreeLink control unit (GA-NET BUS-)
C13 RED HandsFreeLink control unit (AUDIO R-)
C14 GRN HandsFreeLink control unit (AUDIO L-)
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

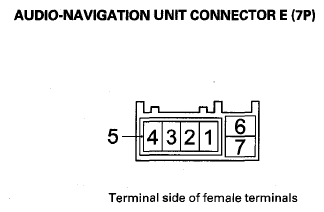

Fig 5: Identifying Audio-Navigation Unit Connector E (7P) Terminals
G08083050Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
E1 -- USB adapter (USB VBUS)
E2 -- USB adapter (USB DATA-)
E3 -- USB adapter (USB DATA+)
E4 -- USB adapter (USB GND)
E5 -- Shield for terminals No. 1, No. 2, No. 3, and No. 4 (USB SH)
E6 -- Connect to terminals No. 7 (USB DET)
E7 -- Connect to terminals No. 6 (USB DET GND)

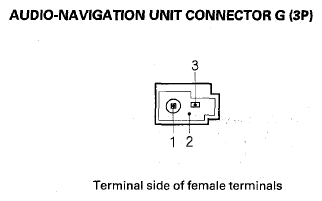

Fig 6: Identifying Audio-Navigation Unit Connector G (3P) Terminals
G08083051Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
G1 -- AM/FM antenna (RF IN)
G2 -- Shield for terminal No. 1 (RFSH)
G3 -- AM/FM antenna (ANT +B)
