Without navigation

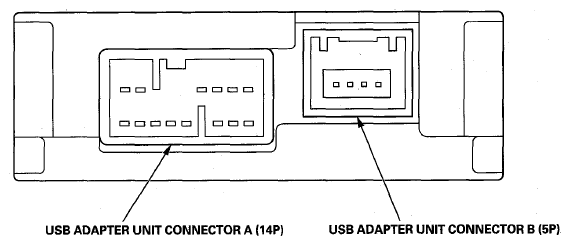

Fig 1: Identifying USB Adapter Unit Connector Terminals - Without Navigation
G08083057Courtesy of AMERICAN HONDA MOTOR CO., INC.

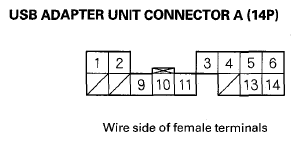

Fig 2: Identifying USB Adapter Unit Connector A (14P) Terminals
G08083058Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
A1 ORN Audio unit or Audio-navigation unit (+ B)
A2 BLU Audio unit or Audio-navigation unit (SYS ACC)
A3 GRY(1) Shield for terminals No. 9 and No. 10(GA-NET BUS SH)
A4 PNK(1) Shield for terminals No. 5, No. 6, No. 13, and No. 14(GA-NET AUDIO SH)
A5 BRN Audio unit or Audio-navigation unit (AUDIO R+)
A6 WHT Audio unit or Audio-navigation unit (AUDIO L+)
A9 YEL Audio unit or Audio-navigation unit (GA-NET BUS +)
A10 GRN Audio unit or Audio-navigation unit (GA-NET BUS-)
A11 BLK Audio unit or Audio-navigation unit (GND)
A13 RED Audio unit or Audio-navigation unit (AUDIO R-)
A14 LT BLU Audio unit or Audio-navigation unit (AUDIO L-)
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
Fig 3: Identifying USB Adapter Unit Connector B (5P) Terminals
G08083059Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire color Connects to
B1 -- USB adapter (USB VBUS)
B2 -- USB adapter (USB DATA-)
B3 -- USB adapter (USB DATA+)
B4 -- USB adapter (USB GND)
B5 -- Shield for terminals No. 1, No. 2, No. 3, and No. 4 (USB SH)
